Technical Values
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

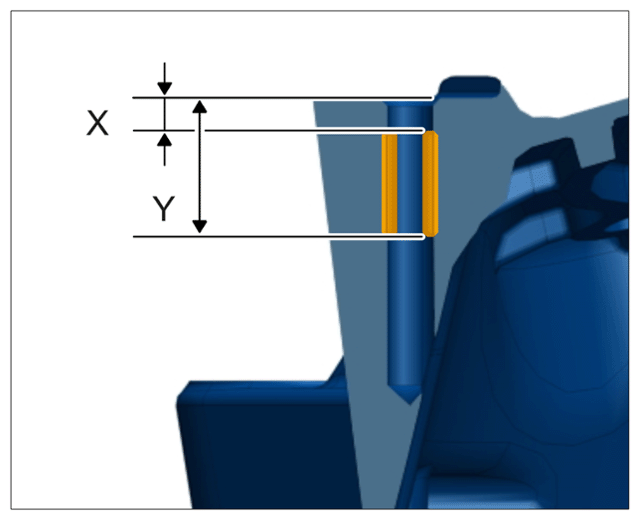

| Milling depth for M12 threaded bushing | Dimension X (measured from outer sheet metal edge) | Test and adjustment value | 12 mm | ||
| Thread depth, M12 | Dimension Y (measured from outer sheet metal edge) | Test and adjustment value | 40 mm | ||

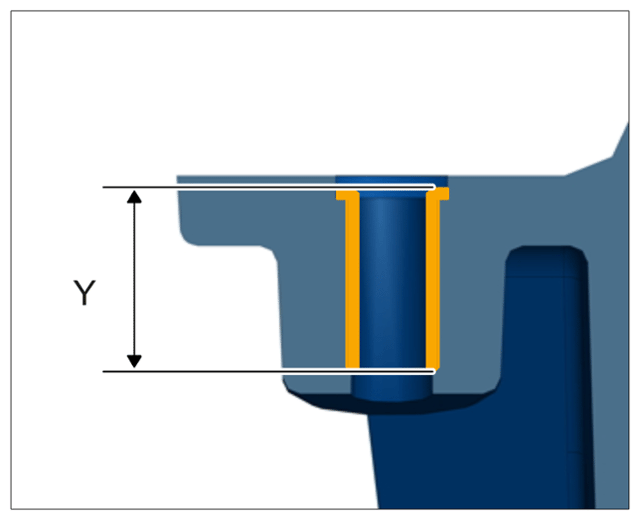

| Thread 1 | Dimension Y | Length | 9.4 mm | ||
|
Thread repairs on spring strut mount M6 |
|||||
| Thread 2 | Dimension Y | Length | 16.2 mm | ||
|
Thread repairs on spring strut mount M8 |
|||||
| Thread 3 | Dimension Y | Length | 20 mm | ||
|
Thread repairs on spring strut mount M8x20 |
|||||
| Thread 3 | Dimension X | Length | 5 mm | ||
|
Thread repairs on spring strut mount M8x20 |
|||||
| Thread 1 | Dimension Y | Length | 20 mm | ||
|
Thread repairs on rear tunnel |
|||||
| Thread 1 | Dimension X | Length | 5 mm | ||
|
Thread repairs on rear tunnel |
|||||
| Thread 2 | Dimension Y | Length | 25 mm | ||
|
Thread repairs on rear tunnel |
|||||
| Thread 2 | Dimension X | Length | 5 mm | ||
|
Thread repairs on rear tunnel |
|||||
| Thread 3 | Dimension Y | Length | 9.4 mm | ||
|
Thread repairs on rear tunnel |
|||||
| Milling depth for M14 threaded bushing on rear axle | Dimension X (measured from outer sheet metal edge) | Test and adjustment value | 4 mm | ||
| Thread depth, M14, rear axle | Dimension Y (measured from outer sheet metal edge) | Test and adjustment value | 35 mm | ||
| Thread 1 | Dimension Y | Length | 20 mm | ||
|
Thread repairs on rear impact absorber plate |
|||||
| Thread 1 | Dimension X | Length | 5 mm | ||
|
Thread repairs on rear impact absorber plate |
|||||
| Thread 2 | Dimension Y | Length | 25 mm | ||
|
Thread repairs on rear impact absorber plate |
|||||
| Thread 2 | Dimension X | Length | 5 mm | ||
|
Thread repairs on rear impact absorber plate |
|||||
