Repairing Spring Strut Mount Thread
Information
The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.
Information
- Remove wire thread inserts that are installed on production side before drilling out.

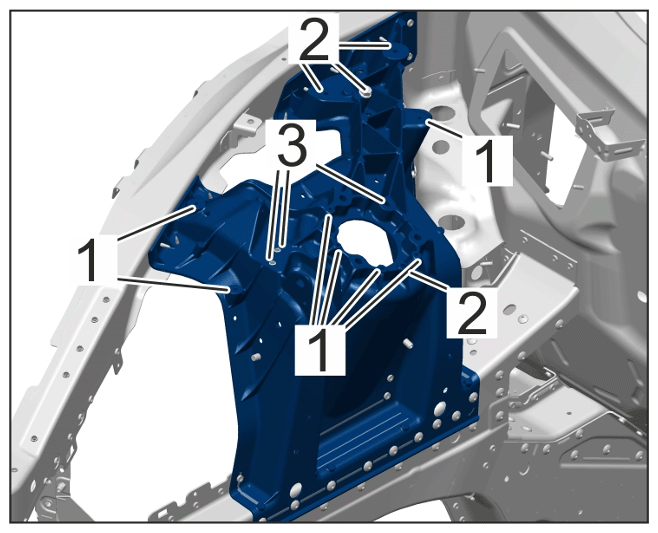

Overview of standard spring strut mount thread
| 1 | M6 |
| 2 | M8 |
| 3 | Threaded insert, M8 x 20 |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 1 | Dimension Y | Length | 9.4 mm | |
|
Thread repairs on spring strut mount M6 |
||||
- Repair thread
> 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit > VAS 6914 - Thread repair kit, M6 x 1 with short threaded bush.

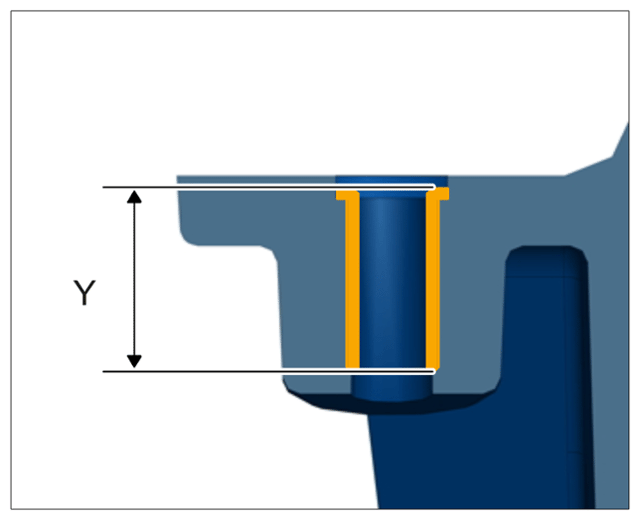

Location Description Type Basic value Tolerance Thread 2 Dimension Y Length 16.2 mm
Thread repairs on spring strut mount M8 - Repair thread
> 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR
Use repair kit > VAS 6915 - Thread repair kit, M8 x 1.25 with long threaded bush.
Location Description Type Basic value Tolerance Thread 3 Dimension Y Length 20 mm

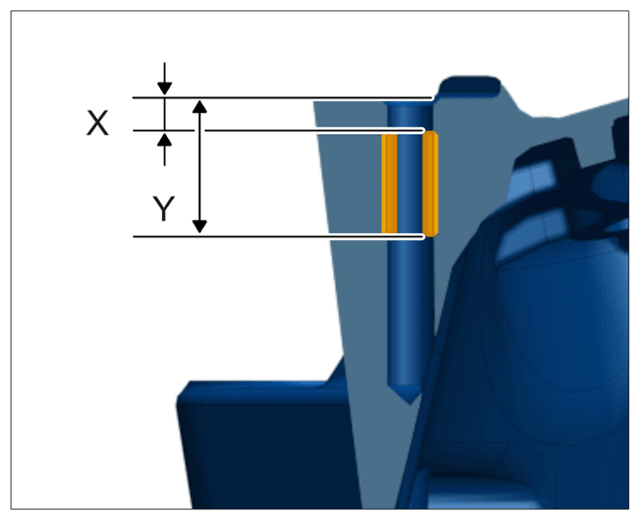

Thread repairs on spring strut mount M8x20Thread 3 Dimension X Length 5 mm
Thread repairs on spring strut mount M8x20 - Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01 .
