Preparing Connection Areas Of The Body For Installing The Floorpan

1. Align the sealing surface and connections of the body.
2. Prepare connection areas for bonding.

   > 5X00IN21 Working with body structural adhesive

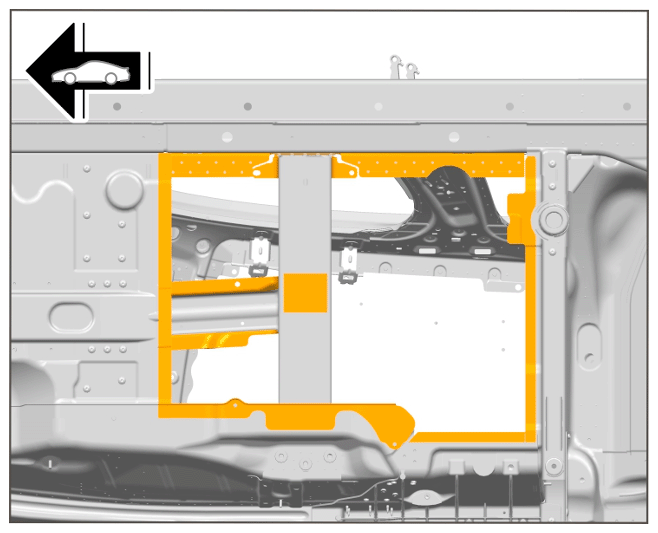

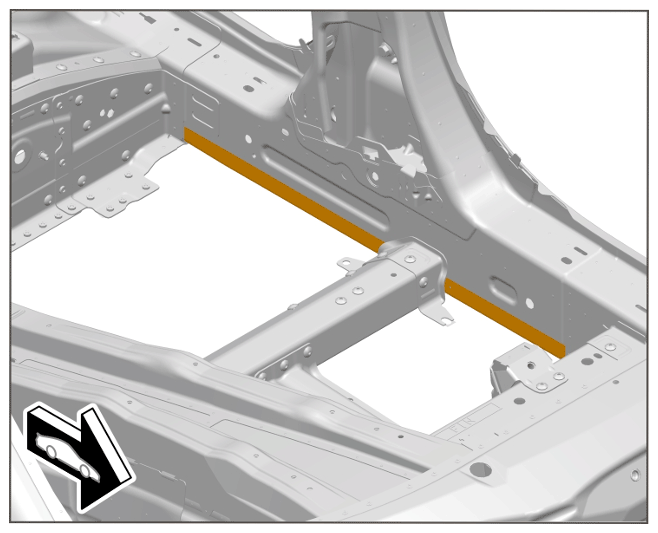

Preparing connection areas for bonding

Preparing connection areas for bonding
