WM, 514855 Replacing Centre Side Member: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16161133

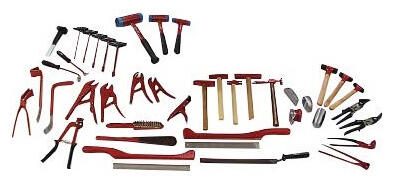

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16161134
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16161135
Measuring and straightening system General workshop equipment > VAS 811 017
G16161136
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16161137
Resistance Spot Welder General workshop equipment > VAS 6755
G16161138
Resistance Spot Welder General workshop equipment > VAS 6545A
G16161139

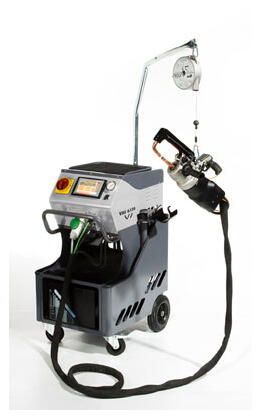

Resistance Spot Welder General workshop equipment > VAS 6530A
G16161140
Resistance Spot Welder General workshop equipment > VAS 821 101
G16161141
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16161142
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16161143
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16161144
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16161145
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16161146
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16161147
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16161148
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16161149
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16161150
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16161151
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16161152
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16161153
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16161154
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16161155
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16161156
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16161157
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16161158
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16161159
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16161160
Spot-weld remover General workshop equipment > VAS 882 001
G16161161
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16161162

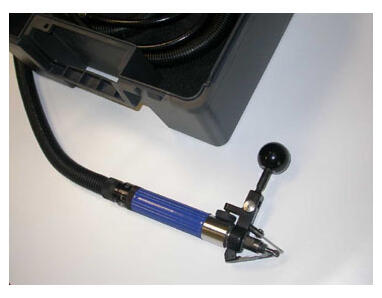

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16161163

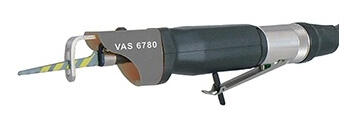

Body saw General workshop equipment > VAS 6780
G16161164
Body saw General workshop equipment > VAS 6598A
G16161165
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16161166
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16161167
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16161168
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16161169
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16161170
Compressed-air gun General workshop equipment > VAS 6648
G16161171
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16161172

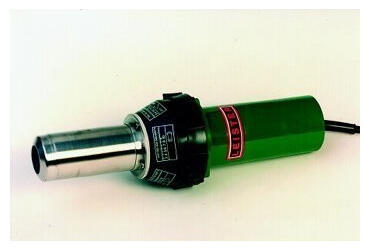

Hot-air blower General workshop equipment > V.A.G 1416
G16161173

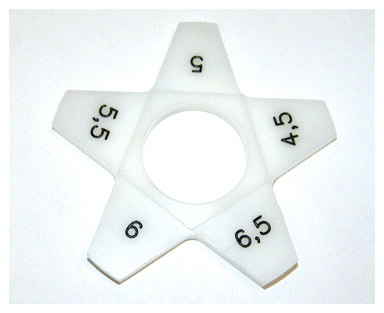

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16161174
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16161175

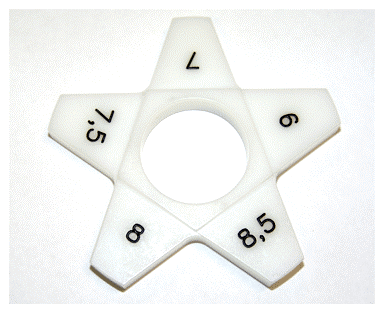

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16161176
