Component Information
Information
Cuts can be made in defined areas in the centre side member due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.
The diagram should help you to determine the correct position of cuts.

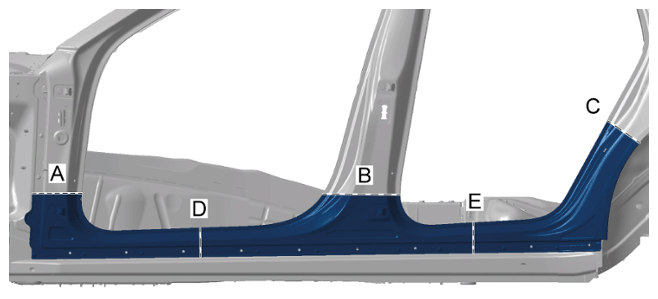

Possible cuts on centre side member
| A-B-C | Replace cuts for outer side member > 514555 REPLACING OUTER SIDE MEMBER |
| B-C-D | Replace cuts for centre side member > 514855 REPLACING CENTRE SIDE MEMBER |
| B-C-D | Replace cuts for B-pillar reinforcement > 514255 REPLACING B-PILLAR REINFORCEMENT |
| D-E | Replace cuts for B-pillar > 514155 REPLACING B-PILLAR |

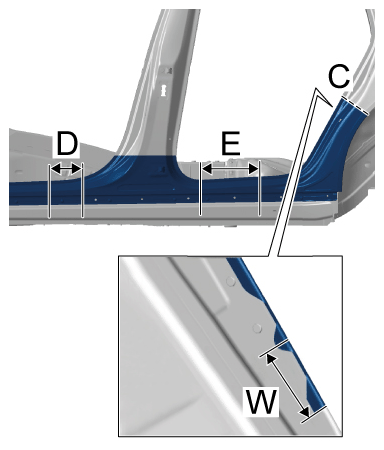

Positions of possible cuts on outer side members
| D | > Distance from bore hole 100 mm |
| E | > Distance from bore hole 235 mm |
| W | > Distance 40 mm |
