Loosening A-Pillar Insert

  1. Drill through the clinch point.

    > Diameter 6,6 mm

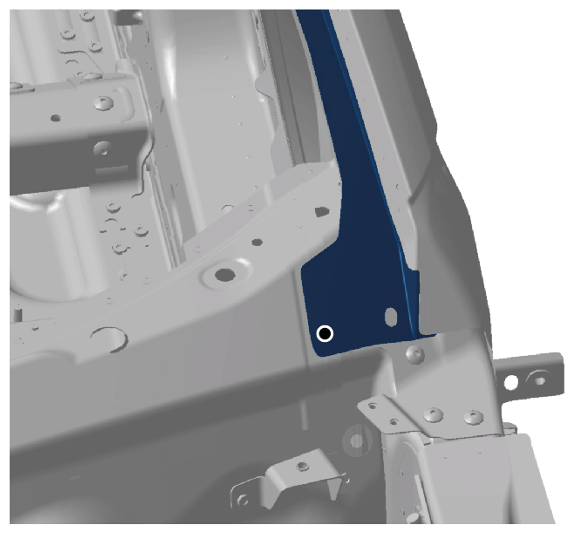

    G16160899

    Clinch point

  2. Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

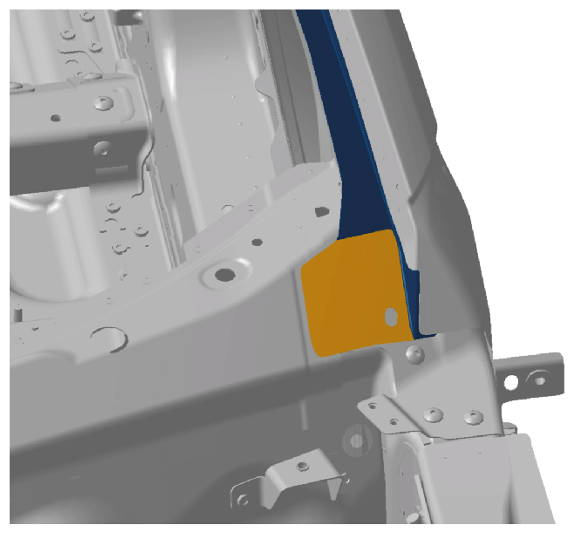

    G16160900

    Bonding area

  3. Bend A-pillar insert up slightly at the left and right.
