WM, 511355 Replacing A-Pillar Reinforcement: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16160763

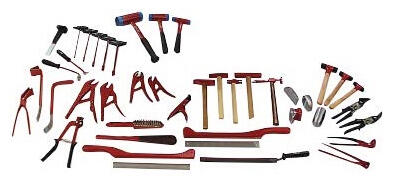

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16160764

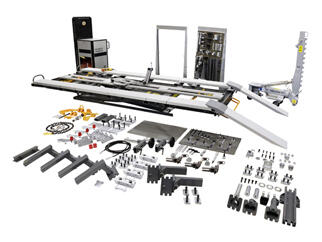

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16160765

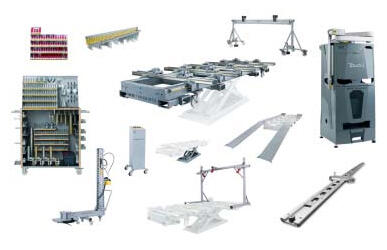

Measuring and straightening system General workshop equipment > VAS 811 017
G16160766

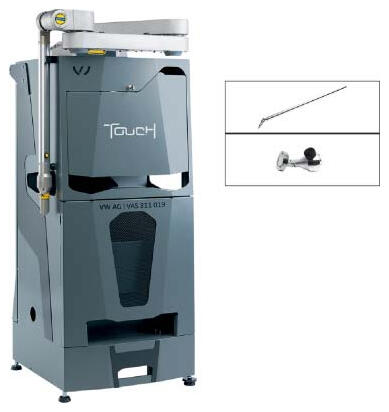

Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16160767

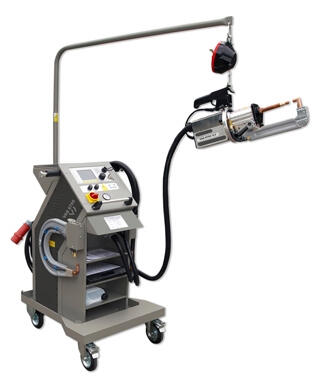

Resistance Spot Welder General workshop equipment > VAS 6755
G16160768

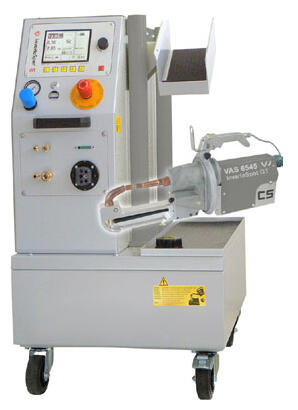

Resistance Spot Welder General workshop equipment > VAS 6545A
G16160769

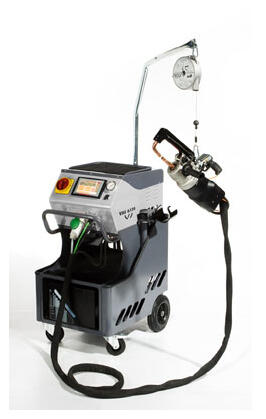

Resistance Spot Welder General workshop equipment > VAS 6530A
G16160770
Resistance Spot Welder General workshop equipment > VAS 821 101
G16160771
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16160772

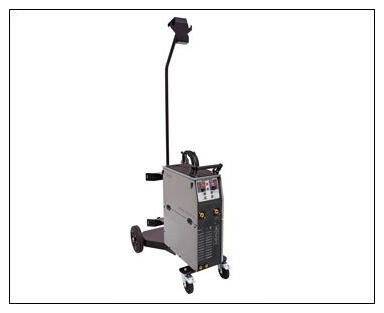

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16160773

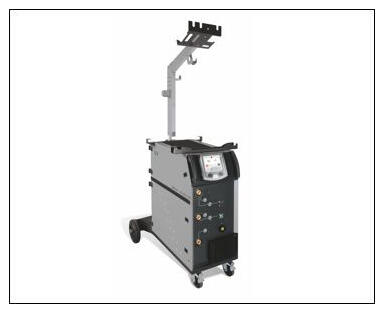

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16160774

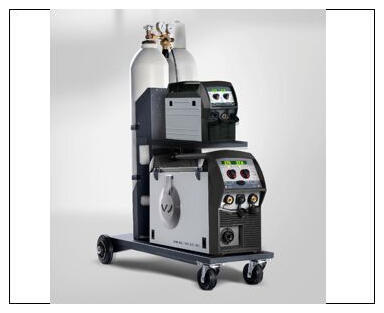

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16160775
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16160776

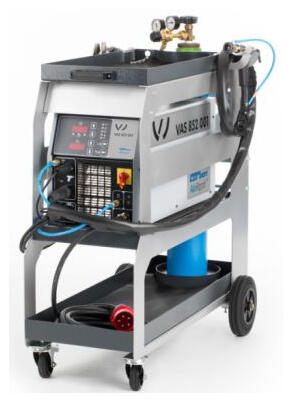

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16160777
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16160778
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16160779

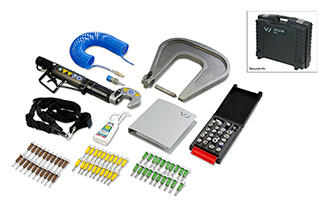

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16160780
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16160781

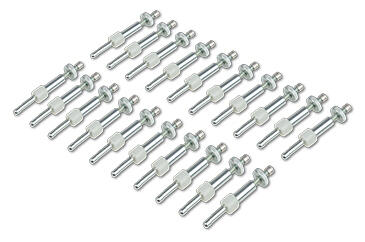

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16160782

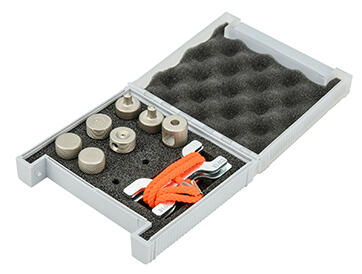

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16160783

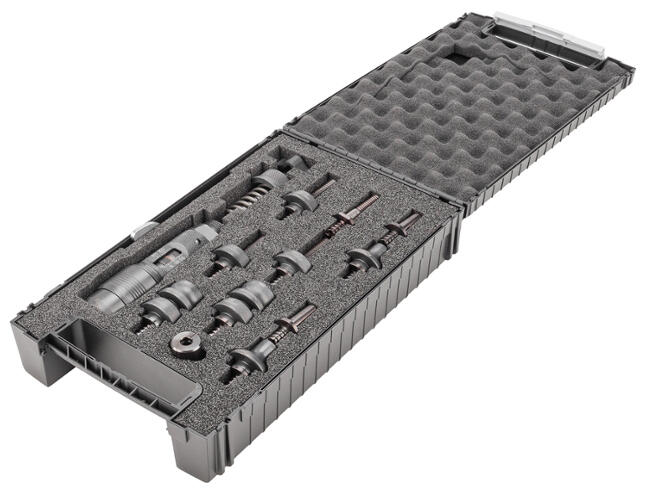

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16160784

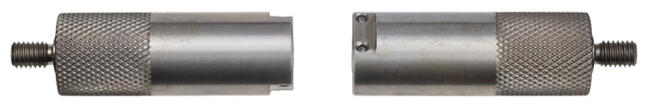

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16160785

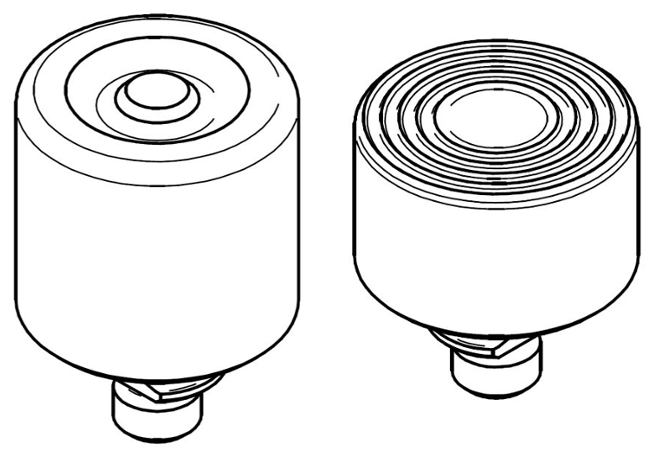

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16160786

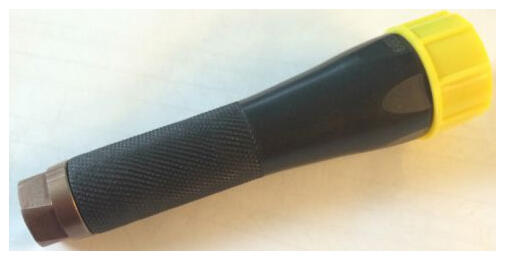

Extension Vehicle-specific workshop equipment > VAS 6792/2
G16160787

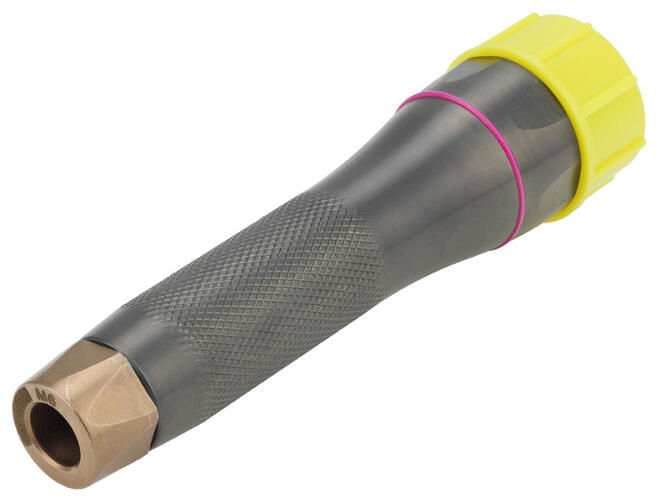

Extension Vehicle-specific workshop equipment > VAS 6792/28
G16160788
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16160789
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16160790
Spot-weld remover General workshop equipment > VAS 882 001
G16160791

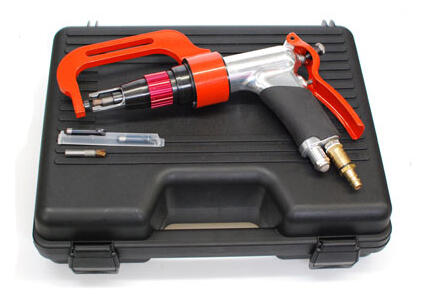

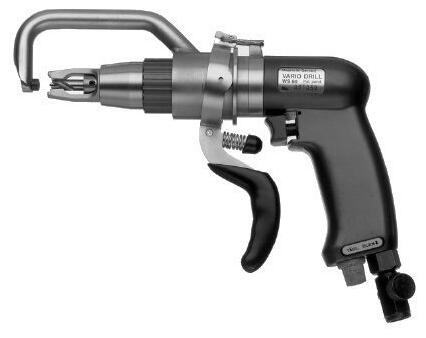

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16160792

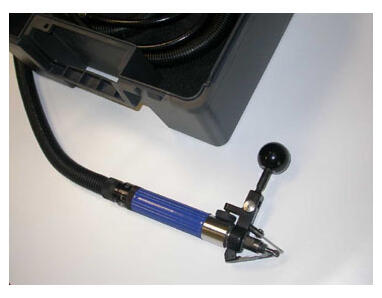

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16160793

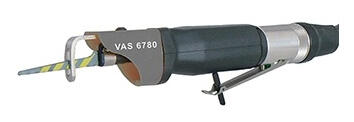

Body saw General workshop equipment > VAS 6780
G16160794
Body saw General workshop equipment > VAS 6598A
G16160795

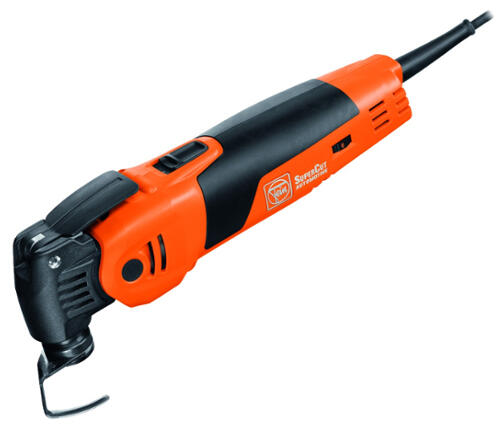

Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16160796
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16160797

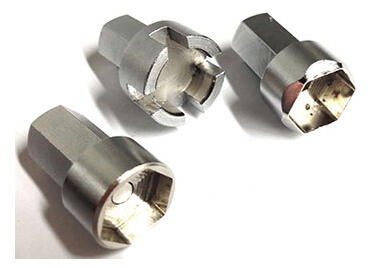

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16160798

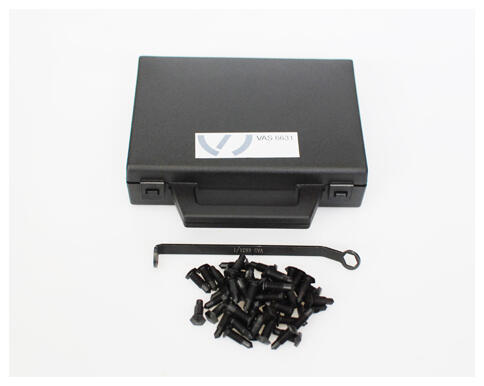

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16160799

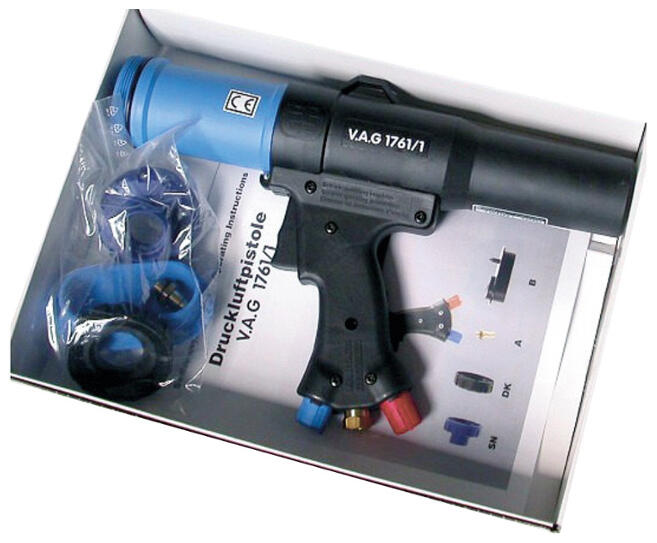

Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16160800

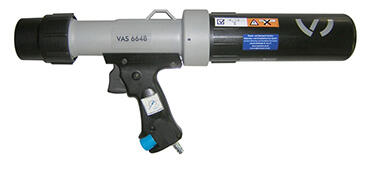

Compressed-air gun General workshop equipment > VAS 6648
G16160801
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16160802

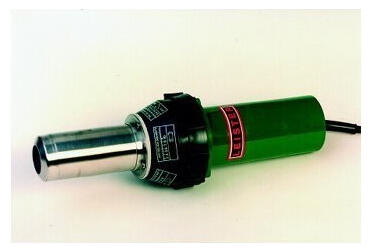

Hot-air blower General workshop equipment > V.A.G 1416
G16160803

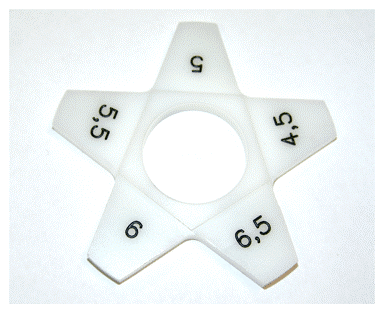

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16160804
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16160805

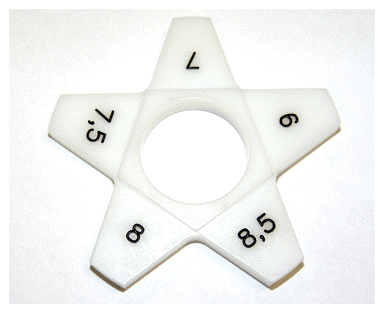

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16160806
