Removing Rear Cross Member

  1. Bend up sheet-metal bracket -1-  .

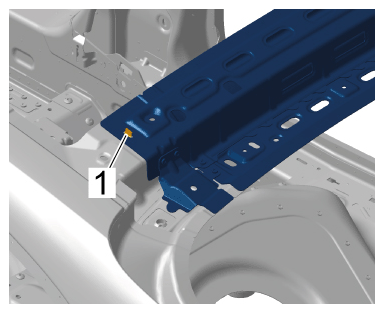

    G16160623

    Sheet-metal bracket

  2. Only for Panamera Saloon

    Disconnect connection points.

    1. 2.1 Remove punch rivet in area -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

    2. 2.2 Drill through clinch points in areas -B-  . > Diameter 4.0 mm

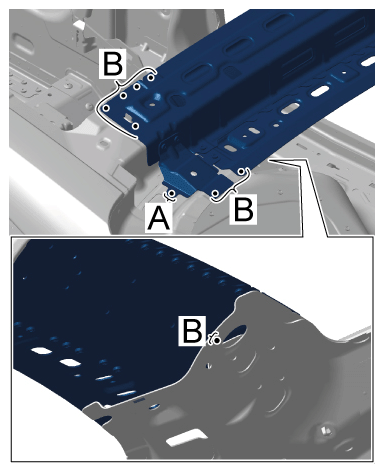

    G16160624

    Connection points (Saloon)

  3. Only for Panamera Sport Turismo

    Drill through clinch points.

    > Diameter 4,0 mm

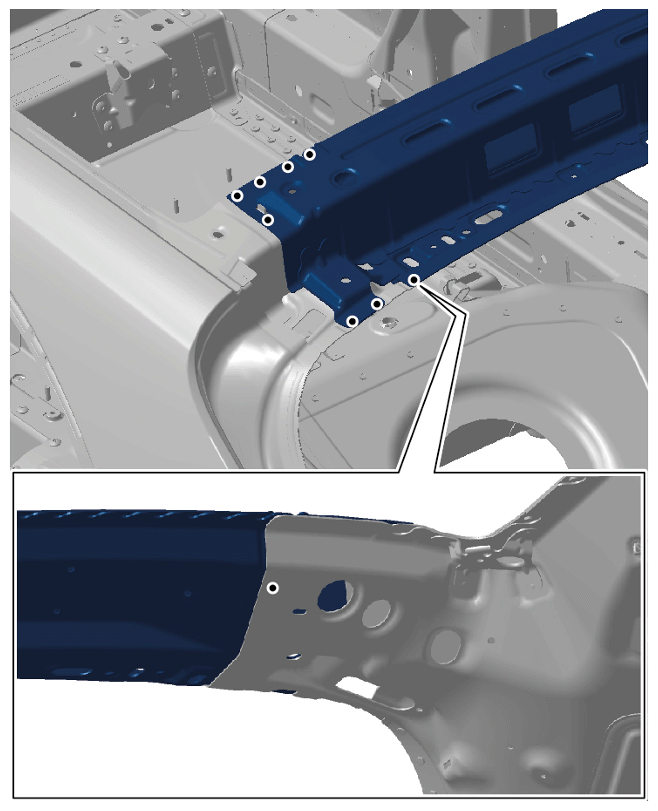

    G16160625

    Connection points (Sport Turismo)

  4. Heat bonding areas using > V.A.G 1416 - Hot-Air Blower  .

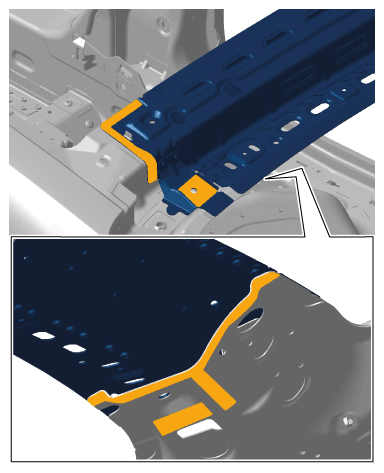

    G16160626

    Bonding areas

  5. Remove rear cross member.
