WM, 510955 Replacing Centre Cross Member: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16160635

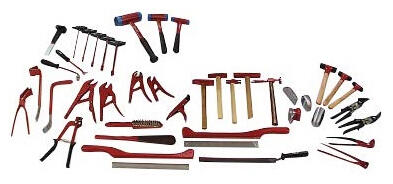

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16160636

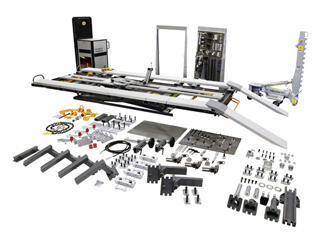

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16160637

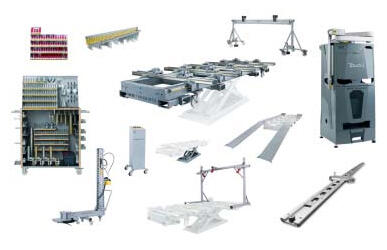

Measuring and straightening system General workshop equipment > VAS 811 017
G16160638

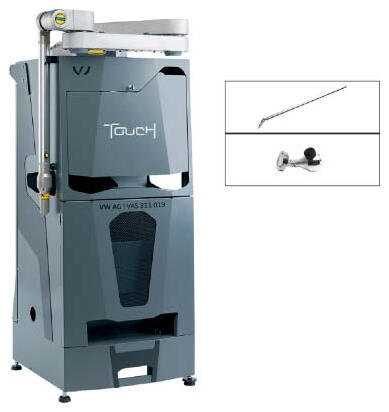

Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16160639

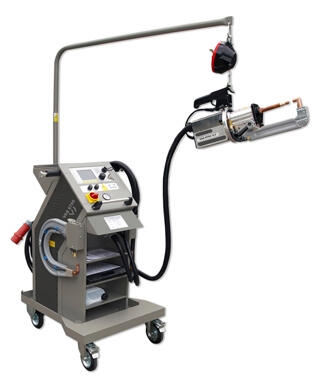

Resistance Spot Welder General workshop equipment > VAS 6755
G16160640

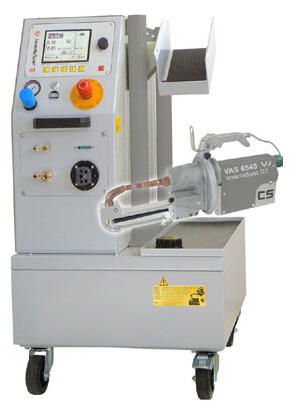

Resistance Spot Welder General workshop equipment > VAS 6545A
G16160641

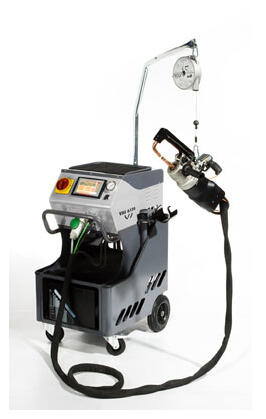

Resistance Spot Welder General workshop equipment > VAS 6530A
G16160642
Resistance Spot Welder General workshop equipment > VAS 821 101
G16160643
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16160644

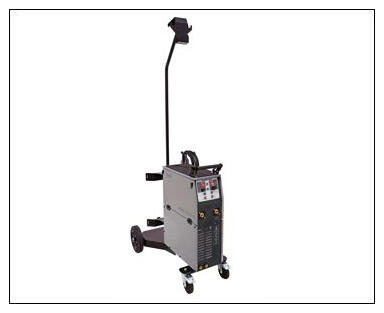

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16160645

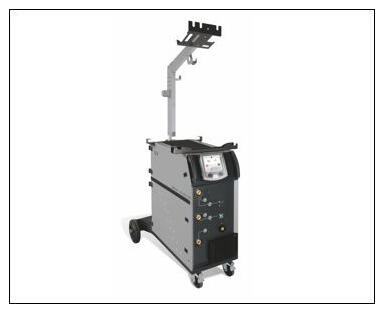

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16160646

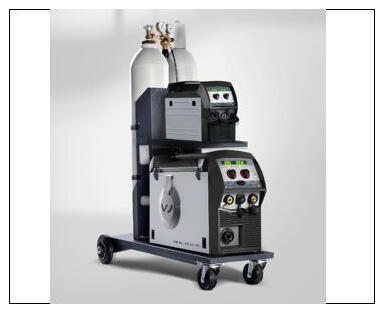

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16160647
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16160648

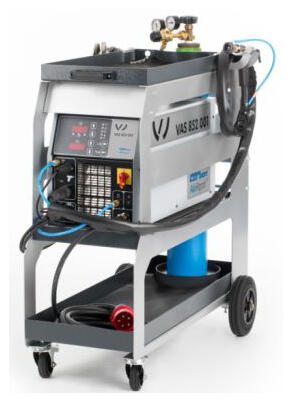

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16160649
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16160650
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16160651

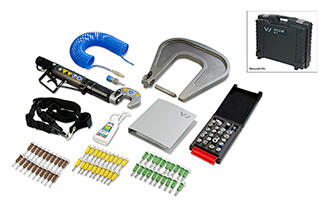

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16160652
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16160653

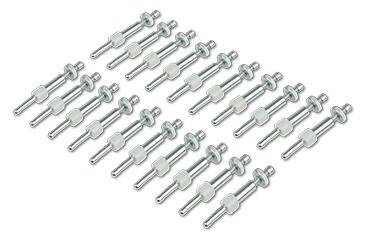

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16160654

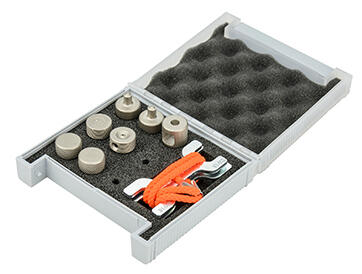

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16160655

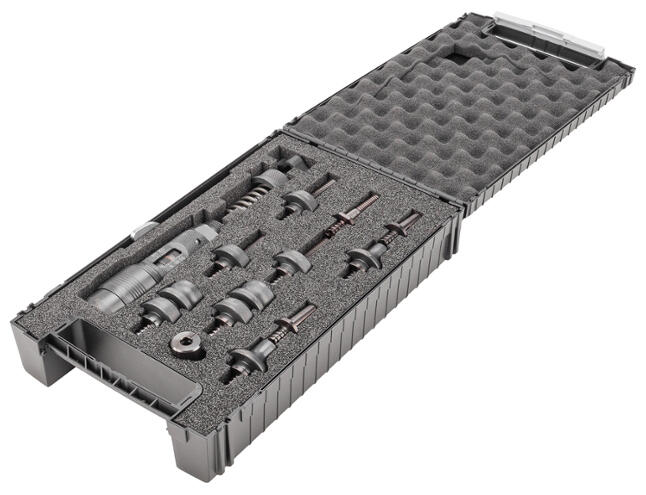

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16160656

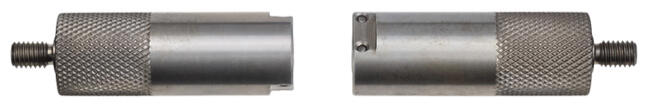

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16160657

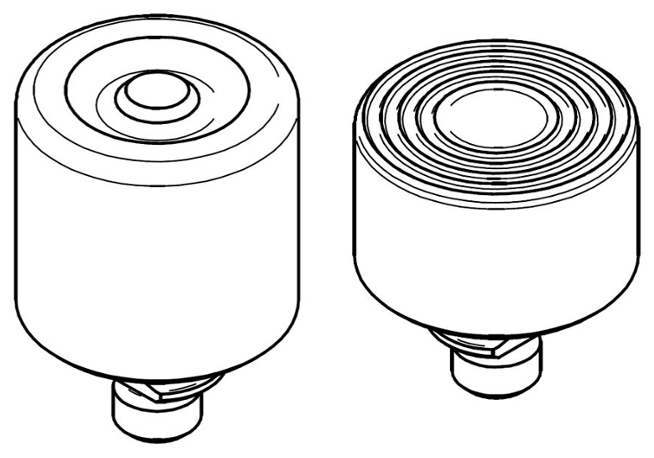

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16160658

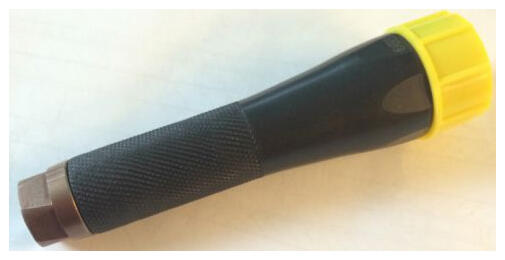

Extension Vehicle-specific workshop equipment > VAS 6792/2
G16160659

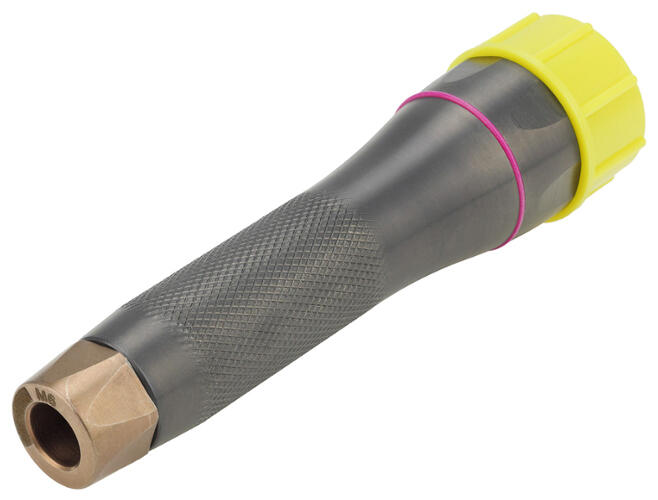

Extension Vehicle-specific workshop equipment > VAS 6792/28
G16160660
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16160661
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16160662

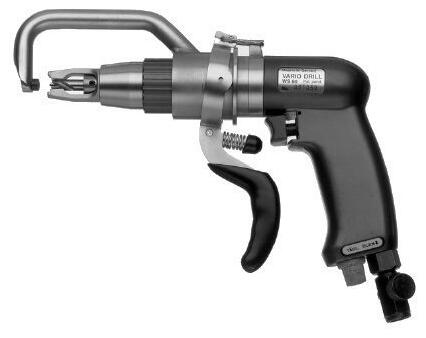

Spot-weld remover General workshop equipment > VAS 882 001
G16160663

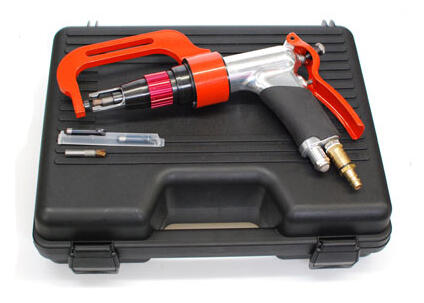

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16160664

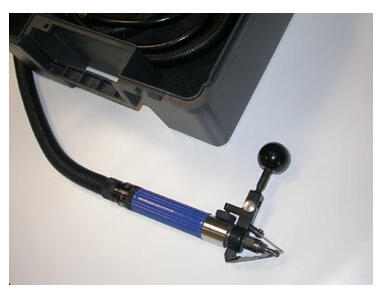

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16160665

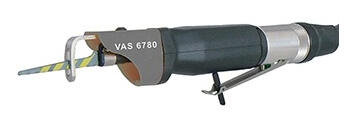

Body saw General workshop equipment > VAS 6780
G16160666
Body saw General workshop equipment > VAS 6598A
G16160667

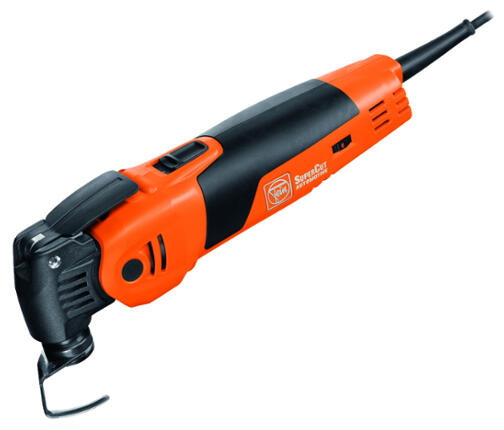

Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16160668
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16160669

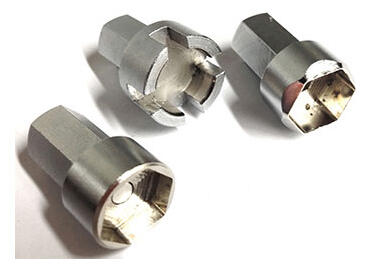

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16160670

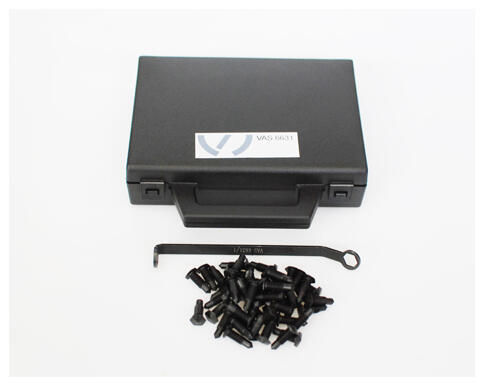

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16160671

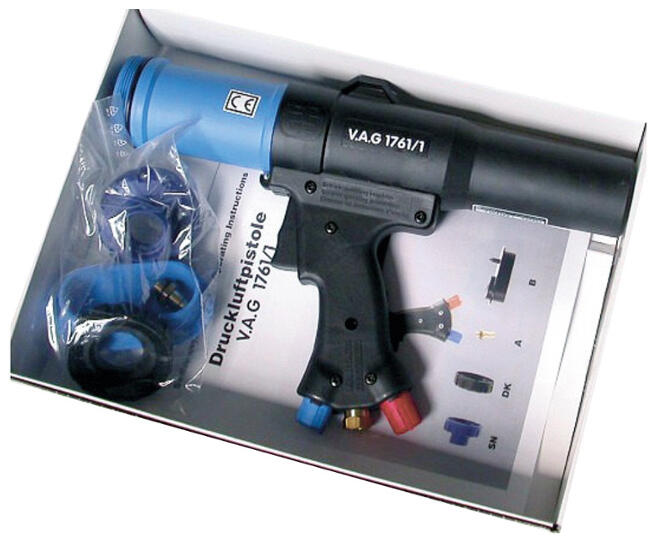

Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16160672

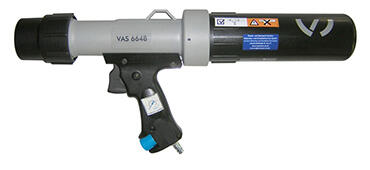

Compressed-air gun General workshop equipment > VAS 6648
G16160673
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16160674

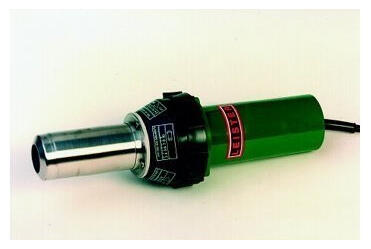

Hot-air blower General workshop equipment > V.A.G 1416
G16160675

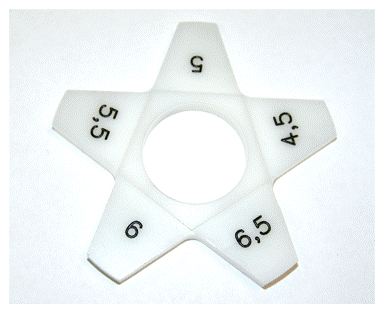

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16160676
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16160677

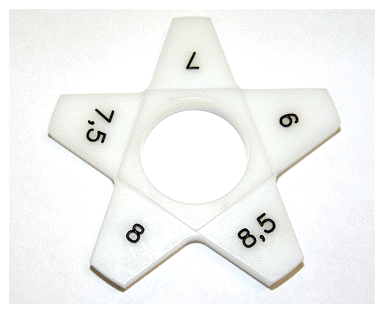

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16160678
