Removing Centre Cross Member

Information

Shown on the left-hand side of the vehicle. The steps are identical for the right-hand side of the vehicle.

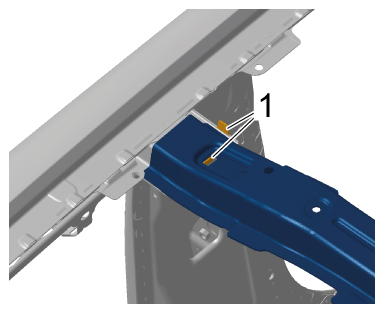

1. Bend up sheetmetal brackets -1-  .

   Sheetmetal brackets

2. Disconnect connection points.

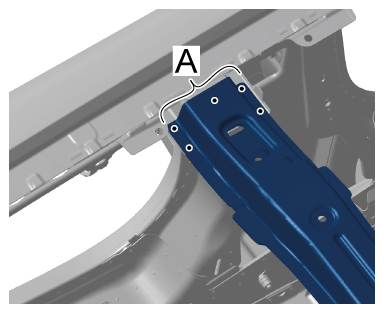

   1. 2.1 Drill out spotwelds in area -A-  .

      Spotwelds

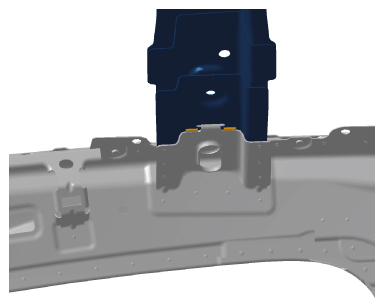

   2. 2.2 Cut welded seams on the centre cross member.

   Welded seams

3. Remove centre cross member.
