Preparing Connection Areas Of The Body For Installing Front Roof Outer Section

  1. Prepare connection areas of the body for installing front roof outer section.
    1. 1.1 Prepare marked areas -A-  for bonding and riveting.

      > 5X00IN21 Working with body structural adhesive

    2. 1.2 Prepare connection areas -B-  for welding.

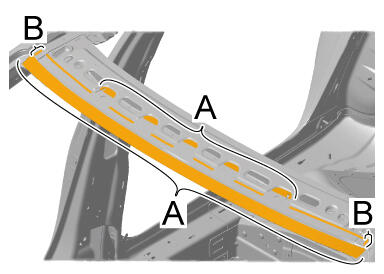

    G16160573

    Connection areas of body
