Preparing Connection Areas Of Body For Installing The Lower Front Roof Cross Member

1. Align the sealing surface and connections of the body.

   > 5X00IN61 WORK SEQUENCE FOR ACCIDENT REPAIRS

2. De-burr connection points and prepare them for joining.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
3. Prepare connection areas of body for installing the lower front roof cross member.

Preparing connection areas of body

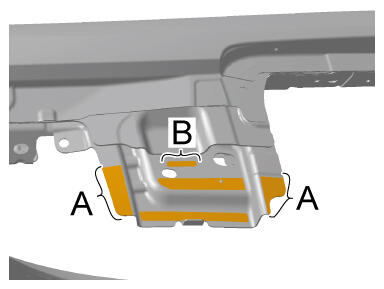

1. 3.1 Prepare marked areas -A-  for resistance spot-welding.
2. 3.2 Prepare marked areas for bonding and riveting.

   > 5X00IN21 Working with body structural adhesive

3. 3.3 Prepare connection area for welding -B-  .
