Installing Outer Roof Rail (Saloon)
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

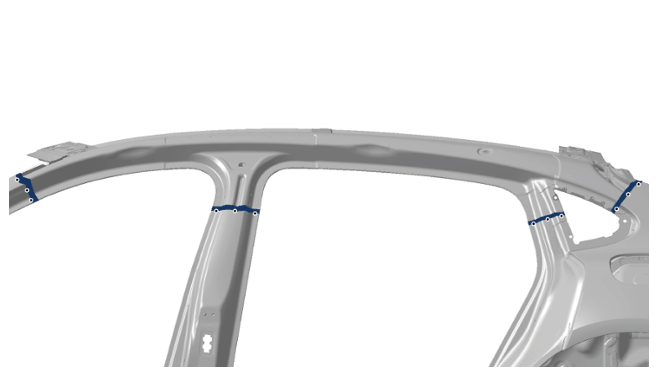

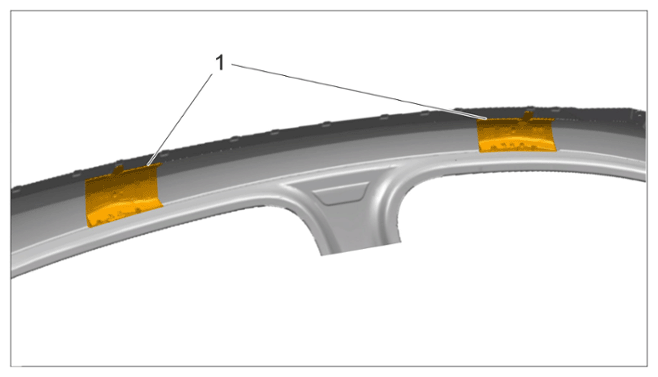

- Tack on sheetmetal insert used as welding backing strip on the body.
Sheetmetal insert

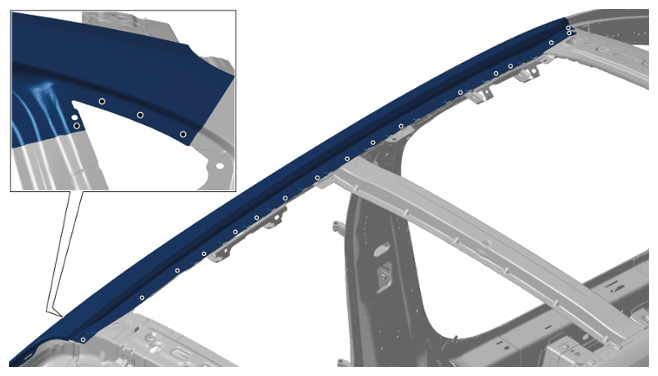

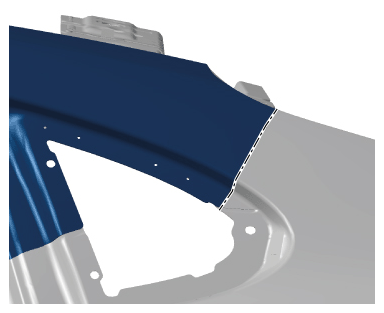

- Install outer roof pillar (Saloon) and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

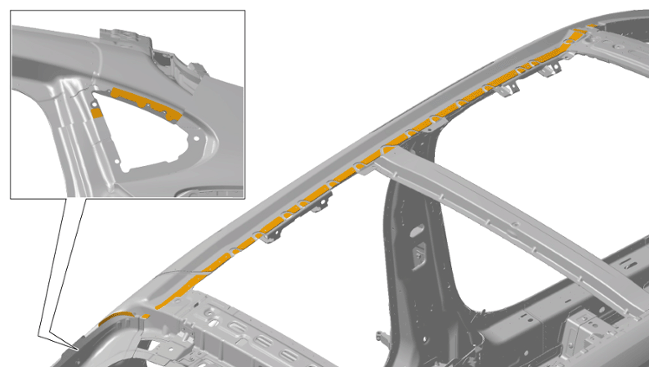

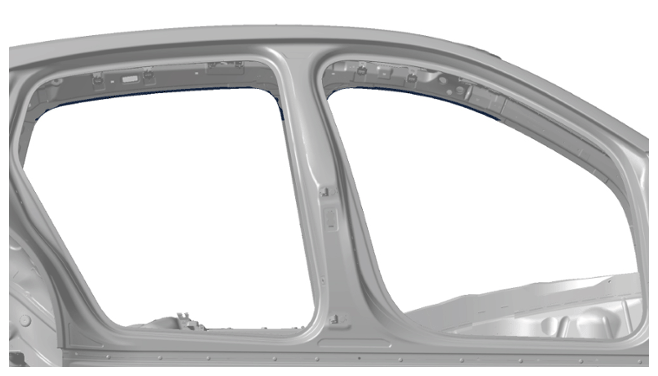

- Apply adhesive on the joint area of the body.
> 5X00IN21 Working with body structural adhesive
> Application depth 3 mm
Apply adhesive
Information
- Apply adhesive evenly over the entire bonding surface.

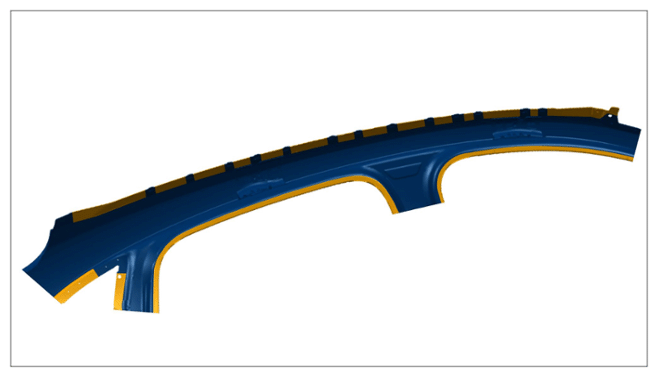

- Apply adhesive on outer roof pillar (Saloon).
> 5X00IN21 Working with body structural adhesive
> Application depth 3 mm
Apply adhesive
- Apply structural foam (000.043.207.66) on roof support system reinforcement -1-
.
> 5X00IN20 WORKING WITH BODY STRUCTURAL FOAM
> Application depth 3 mm
Applying structural foam
- Rivet in outer roof pillar (Saloon) using > flow-form rivet 97A.008.473.00
.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Outer roof pillar (Saloon)
- Apply an aluminium weld to the outer roof pillar (Saloon).

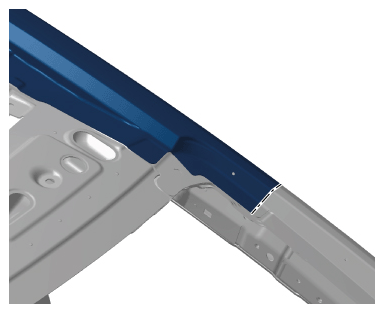

Outer roof pillar (Saloon) at A-pillar

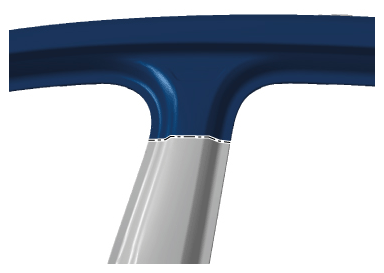

Outer roof pillar (Saloon) at B-pillar

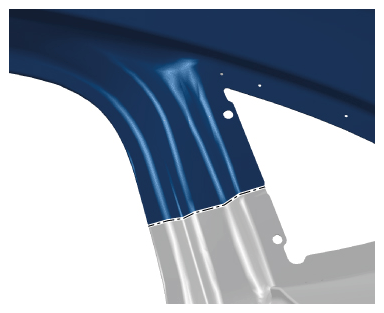

Outer roof pillar (Saloon) at C-pillar

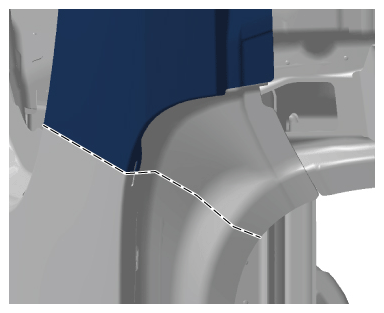

Outer roof pillar (Saloon) at window aperture
Outer roof pillar (Saloon) at water drain channel
- Bend over edges in door apertures using > VAS 6635 - Crimping pliers set, 4-piece .
Edges in door apertures
