Installing Inner Roof Pillar

1. Install inner roof pillar and check that it fits perfectly.

   > 5X00IN GAP DIMENSIONS

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.

   Information

   • Apply adhesive evenly over the entire bonding surface.

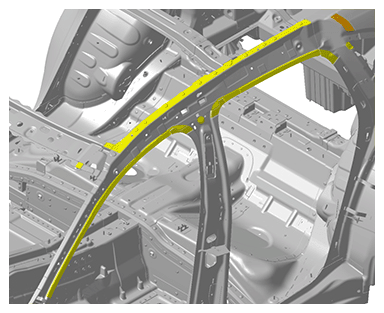

2. Apply adhesive on joint areas of the body.

   > 5X00IN21 Working with body structural adhesive

   > Application depth 0.5 mm

   Joint areas

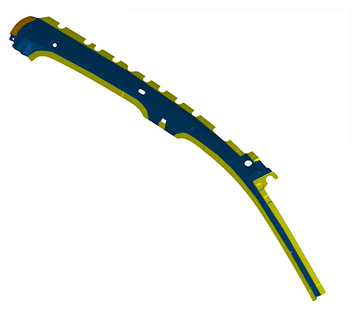

3. Apply adhesive on inner roof pillar.

   Information

   • Apply adhesive evenly over the entire bonding surface.
   1. 3.1 Apply adhesive evenly on bonding areas of the inner roof pillar.

      > Application depth 0,5 mm

   2. 3.2 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

   Joint areas

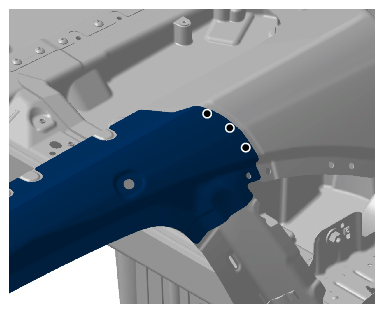

4. Rivet in inner roof pillar. > BLIND RIVET 999.190.229.01

   Blind rivets

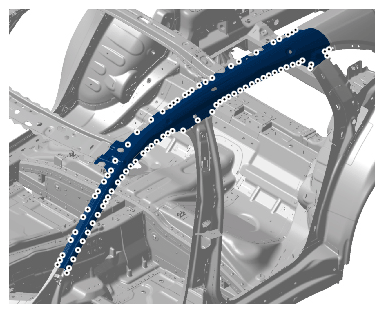

5. Resistance spot-weld inner roof pillar.

Inner roof pillar
