WM, 51035500 Replacing Roof (Full Roof): Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16160240

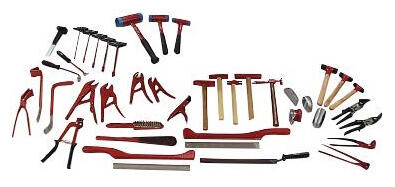

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16160241
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16160242
Measuring and straightening system General workshop equipment > VAS 811 017
G16160243
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16160244
Resistance spot-welding equipment General workshop equipment > VAS 6755
G16160245
Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16160246

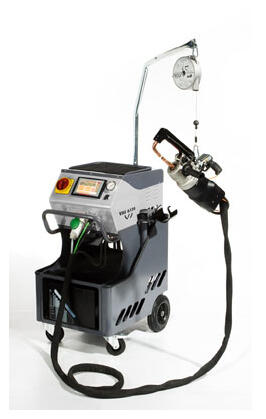

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16160247
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16160248
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16160249
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16160250
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16160251
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16160252
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16160253
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16160254
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16160255
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16160256
Extraction system, steel General workshop equipment > VAS 6571/1
G16160257
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16160258
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16160259
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16160260
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16160261
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16160262
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16160263
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16160264
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16160265
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16160266
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16160267
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16160268
Spot-weld remover General workshop equipment > VAS 882 001
G16160269
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16160270

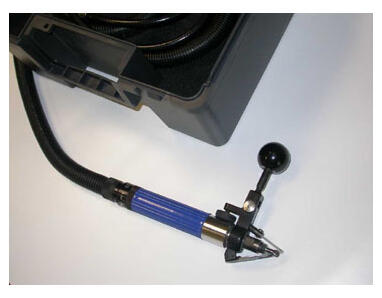

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16160271
Body saw General workshop equipment > VAS 882 003

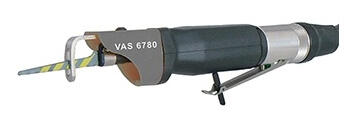

Body saw General workshop equipment > VAS 6780
G16160272
Body saw General workshop equipment > VAS 6598A
G16160273
Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16160274
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16160275
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16160276
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16160277
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16160278
Compressed-air gun General workshop equipment > VAS 6648
G16160279
Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16160280

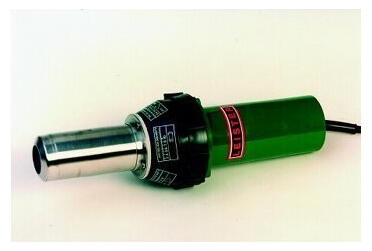

Hot-air blower General workshop equipment > V.A.G 1416
G16160281

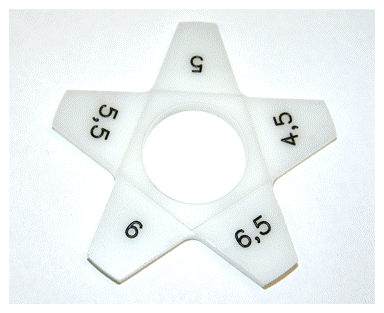

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16160282
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16160283

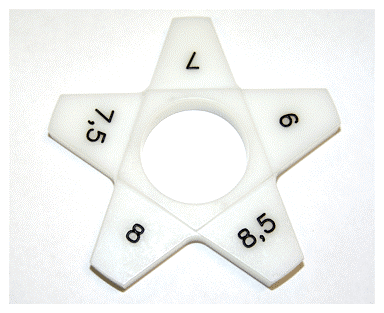

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16160284
