WM, 510355 Replacing Roof (Panoramic Roof): Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16160308

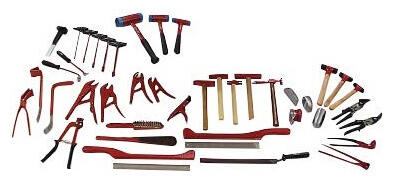

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16160309
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16160310
Measuring and straightening system General workshop equipment > VAS 811 017
G16160311
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16160312
Resistance spot-welding equipment General workshop equipment > VAS 6755
G16160313
Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16160314

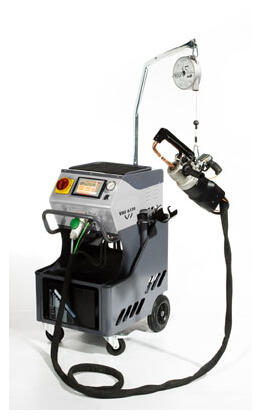

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16160315
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16160316
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16160317
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16160318
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16160319
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16160320
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16160321
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16160322
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16160323
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16160324
Extraction system, steel General workshop equipment > VAS 6571/1
G16160325
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16160326
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16160327
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16160328
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16160329
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16160330
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16160331
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16160332
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16160333
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16160334
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16160335
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16160336
Spot-weld remover General workshop equipment > VAS 882 001
G16160337
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16160338

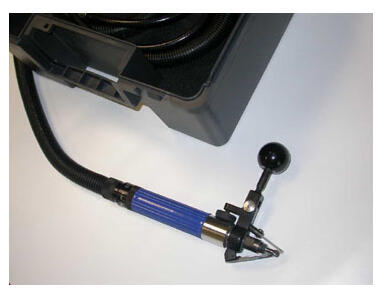

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16160339
Body saw General workshop equipment > VAS 882 003

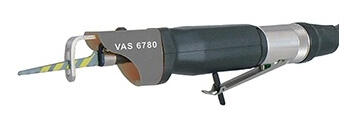

Body saw General workshop equipment > VAS 6780
G16160340
Body saw General workshop equipment > VAS 6598A
G16160341
Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16160342
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16160343
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16160344
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16160345
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16160346
Compressed-air gun General workshop equipment > VAS 6648
G16160347
Hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16160348

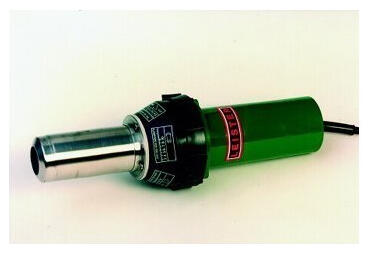

Hot-air blower General workshop equipment > V.A.G 1416
G16160349

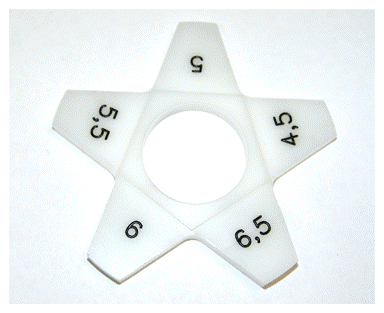

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16160350
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16160351

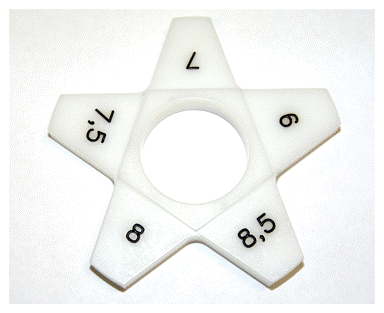

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16160352
