Loosening Cowl Panel Bracket

1. Mark separation points on sub-part of A-pillar -1-  and make cuts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points on sub-part of A-pillar

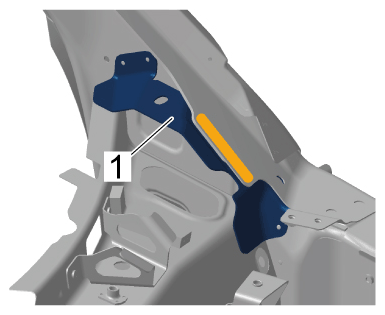

2. Heat bonding areas and remove sub-part of A-pillar -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sub-part of A-pillar - bonding areas

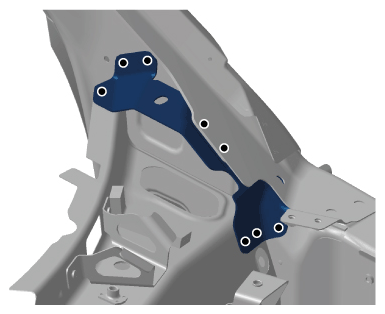

3. Drill out spotwelds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

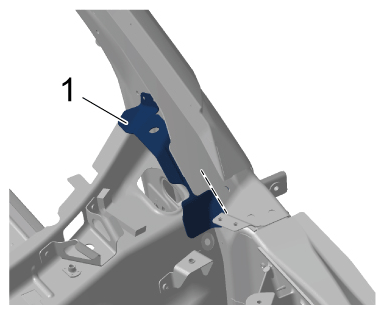

4. Mark and make cut through sub-part of cowl panel bracket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points

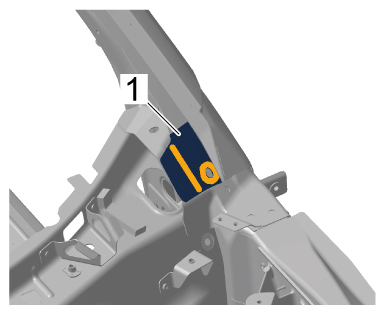

5. Heat bonding areas and remove sub-part of cowl panel bracket -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
