Installing Body Front Section

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install body front section and check that it fits perfectly.

   > 5X00IN GAP DIMENSIONS

   Information

   • Apply adhesive evenly over the entire bonding surface.

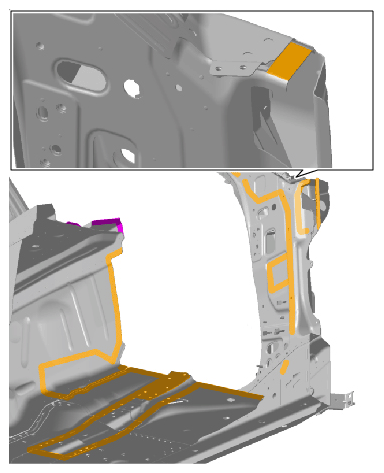

2. Apply adhesive on joint areas of the body. > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint areas

   Orange	Bonding and riveting > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
   Magenta	Applying full weld using inert gas

   Information

   • Apply adhesive evenly over the entire bonding surface.

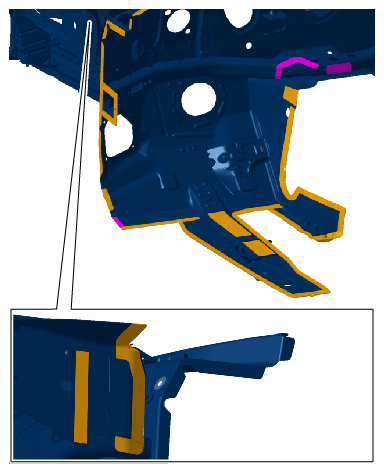

3. Apply adhesive on marked areas of the body front section.
   1. 3.1 Apply adhesive evenly on the bonding surface. > Application depth 0.5 mm
   2. 3.2 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint areas

   Orange	Bonding and riveting > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
   Magenta	Applying full weld using inert gas

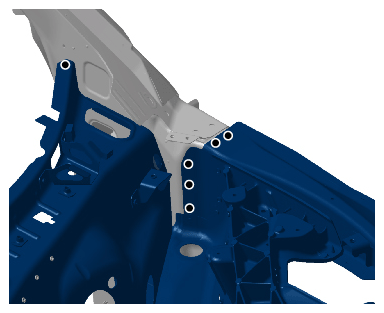

4. Install body front section.

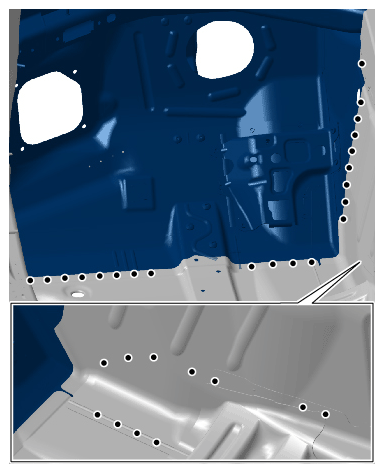

   1. 4.1 Rivet in body front section. > BLIND RIVETS 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Blind rivets

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Blind rivets

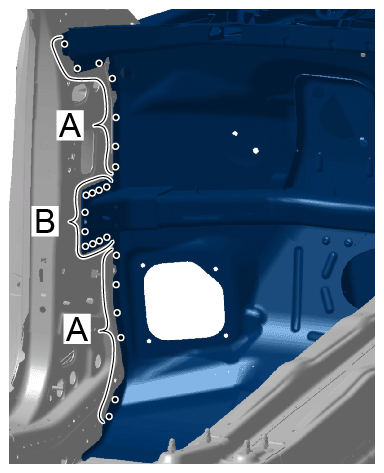

   2. 4.2 Rivet in body front section in areas -A-  . > BLIND RIVETS 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Blind rivets

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Blind rivets

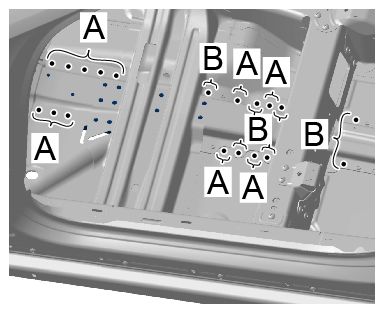

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bore holes

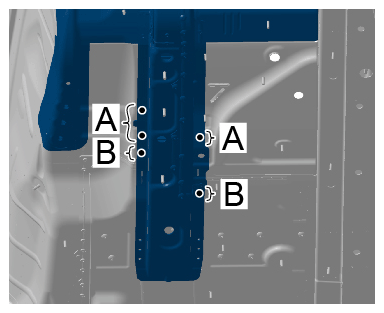

   3. 4.3 Rivet in body front section in areas -B-  . > BLIND RIVETS 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bore holes

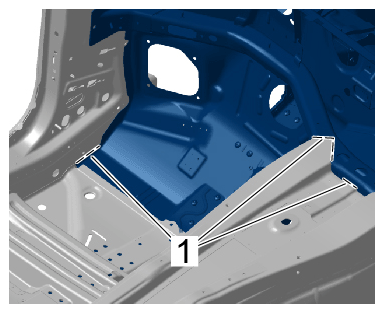

5. Apply a full weld to the body front section -1-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying full weld using inert gas

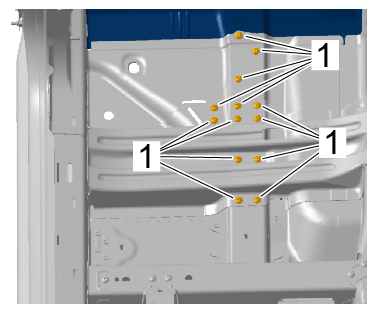

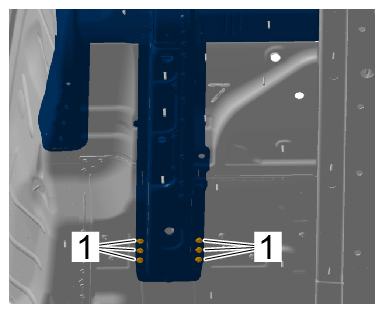

6. Screw in self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws
