Removing Gusset Plate

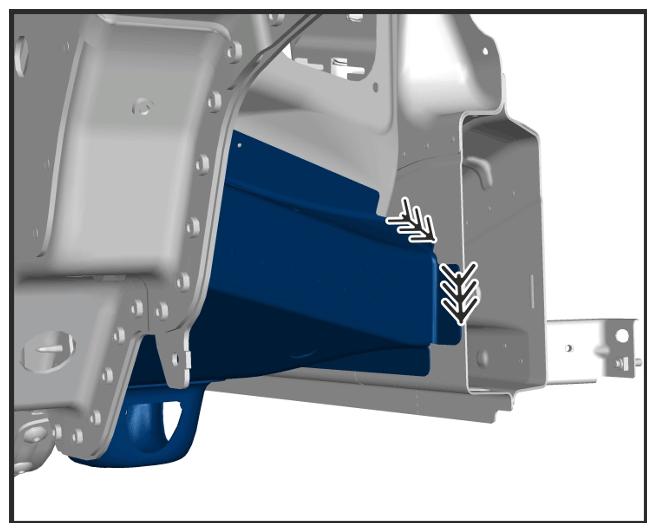

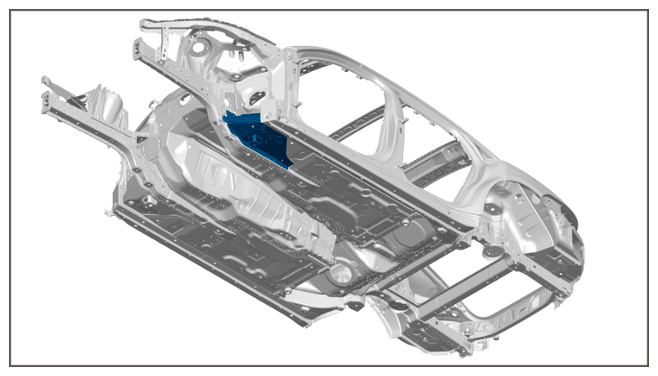

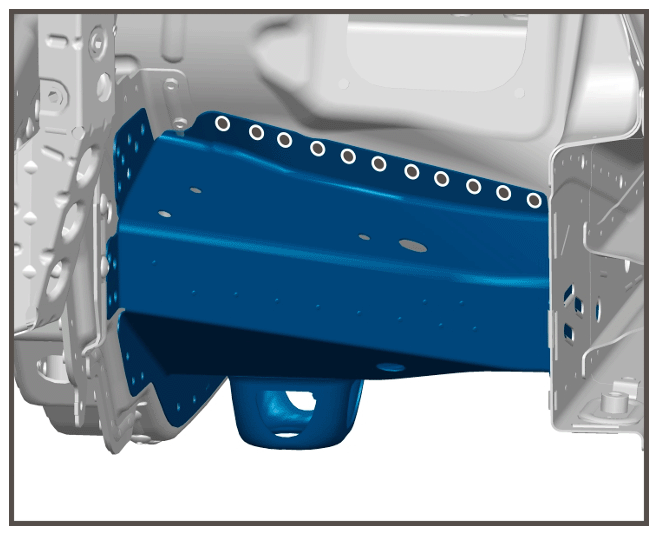

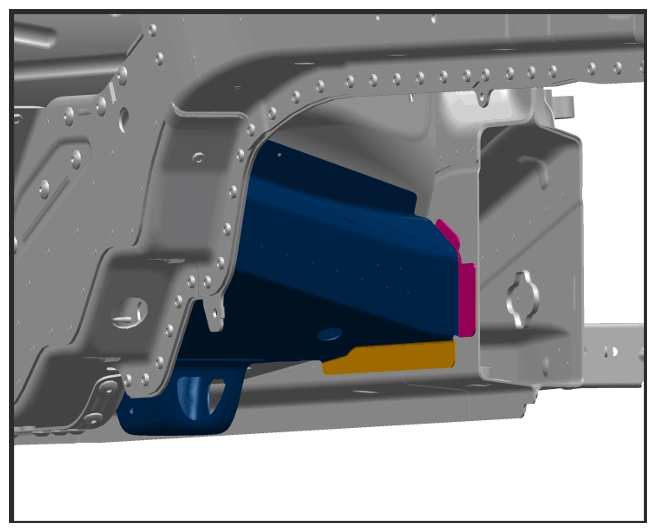

Fig 1: Gusset Plate Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

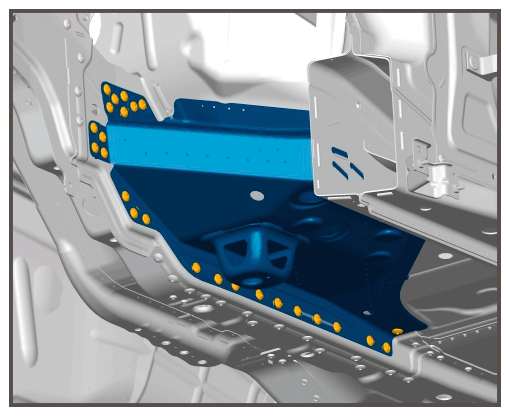

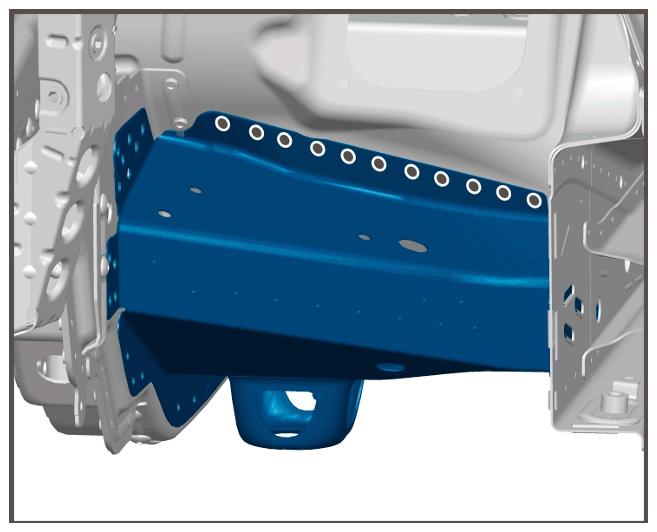

Installation position of gusset plate

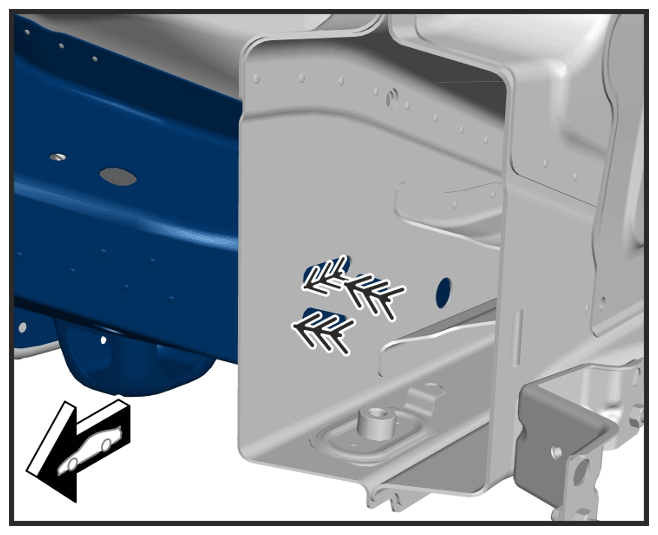

1. Grind down welded seams.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

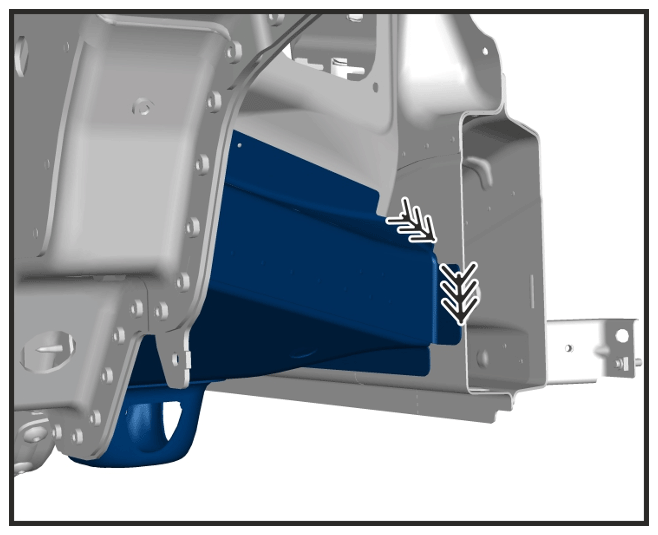

   Removing closing element

2. Unscrew self-tapping screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

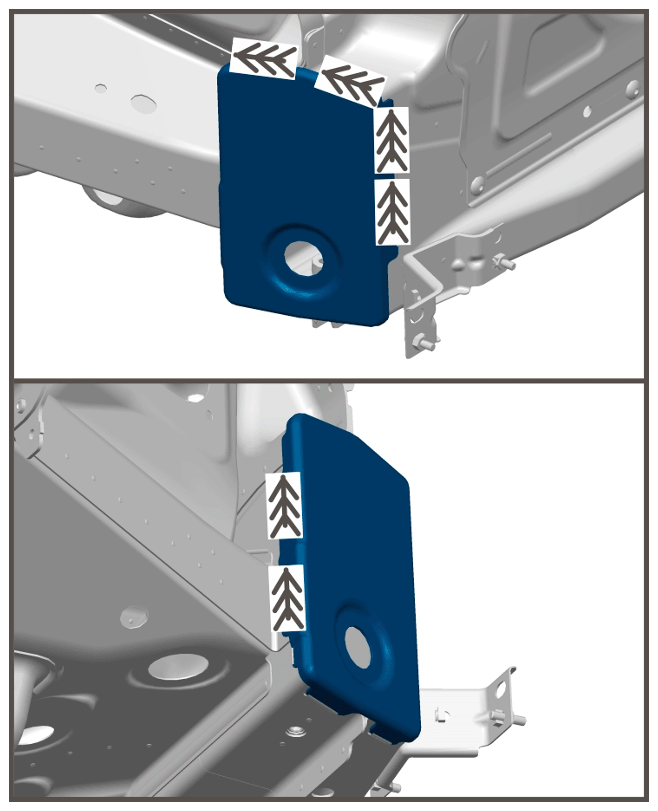

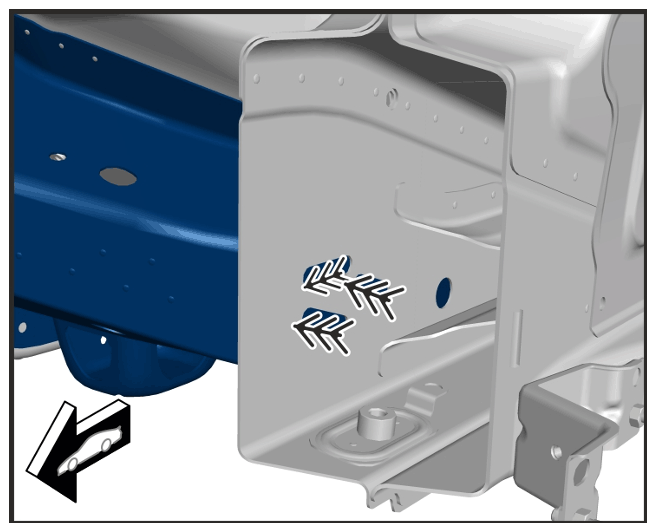

   Unscrewing self-tapping screws

3. Drill out spotwelds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

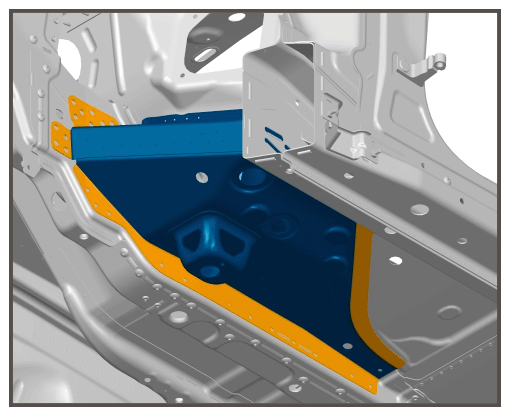

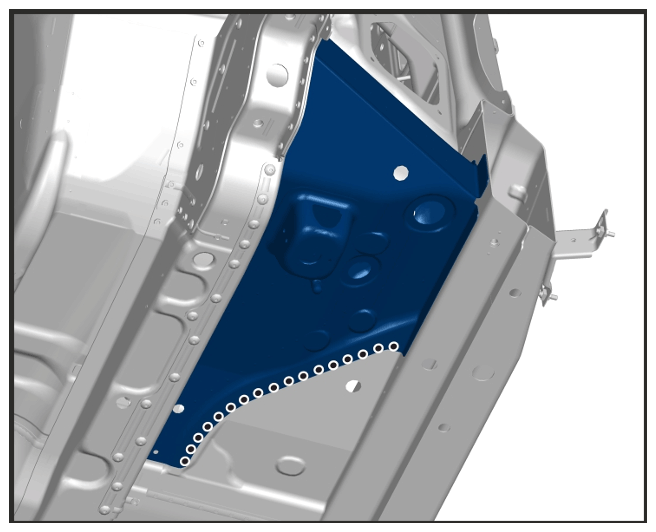

   Drilling out spotwelds

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

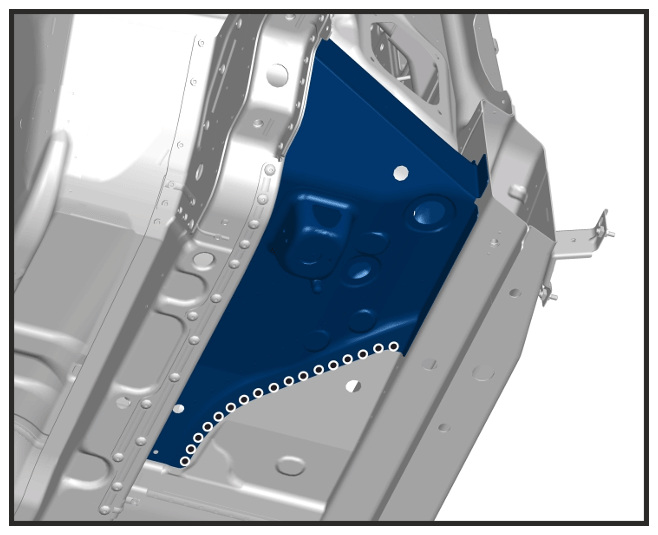

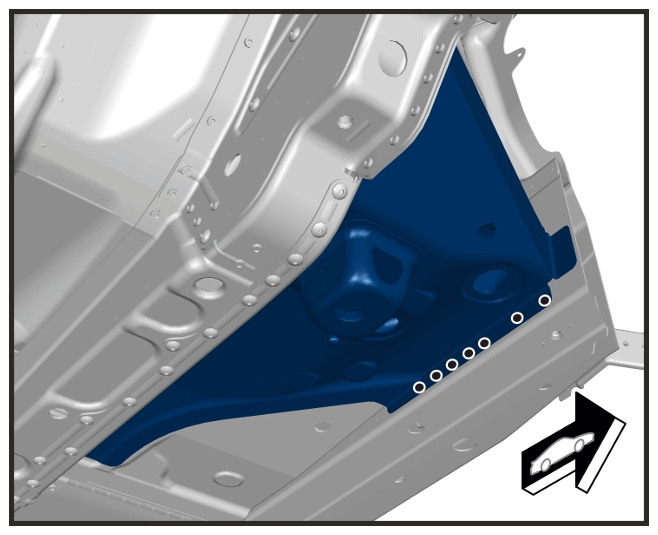

   Drilling out spotwelds

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

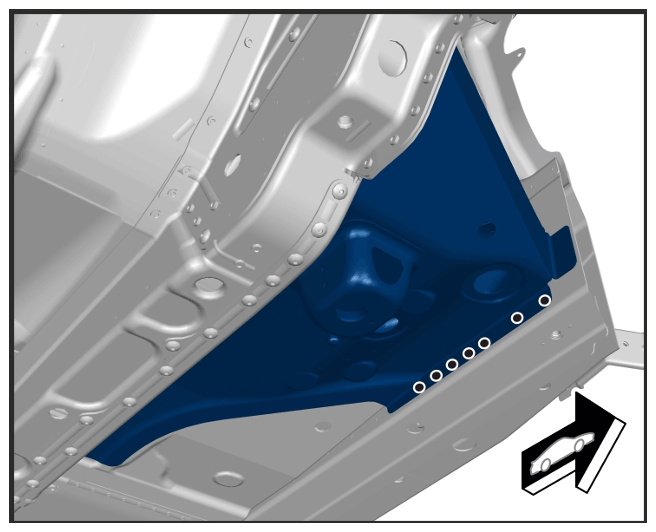

   Drilling out spotwelds

4. Grind down welded seams.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

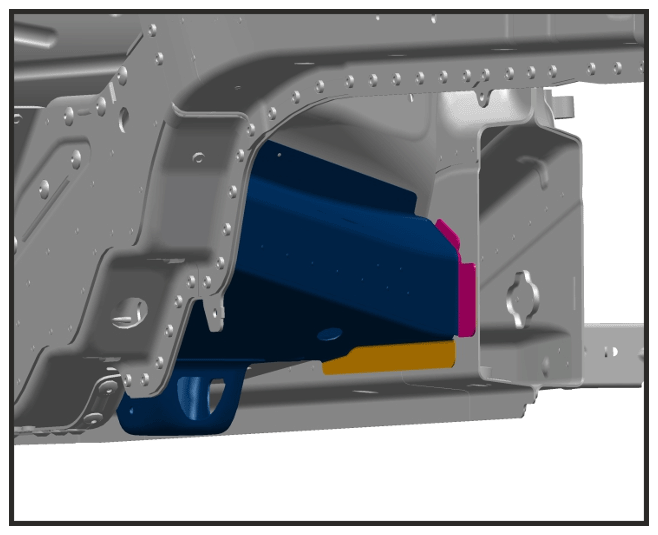

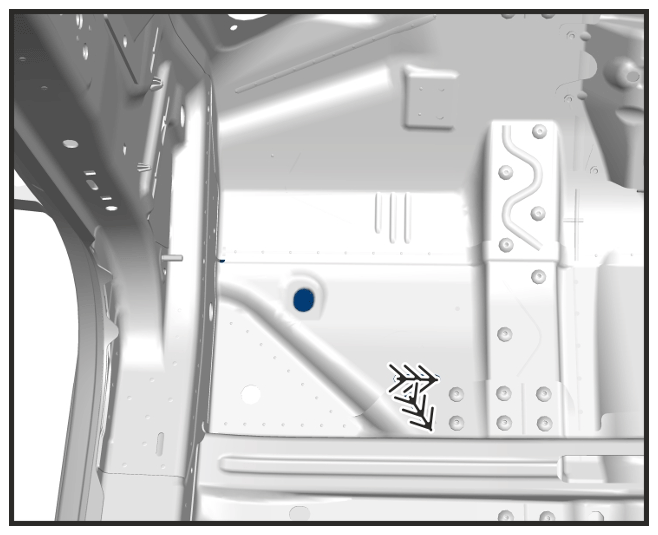

   Grinding down welded seams

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

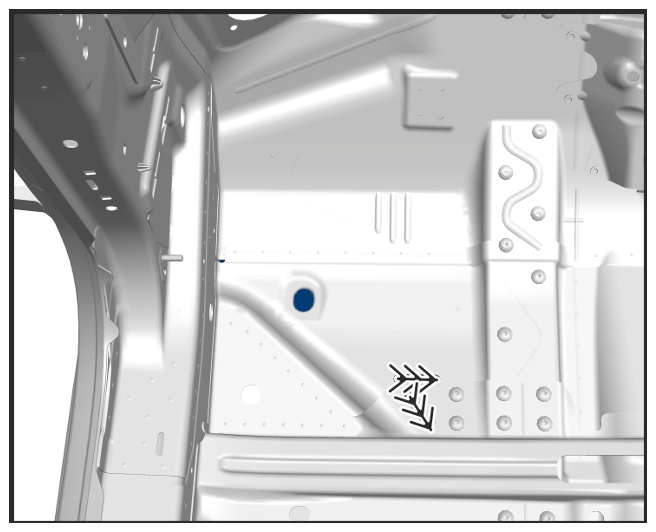

   Grinding down welded seams

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Grinding down welded seams

5. Heat bonding surfaces -yellow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating bonding surfaces

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating bonding surfaces

6. Remove gusset plate.
