Disassembling Lock Carrier

Remove air cleaner housing.
> 242519 Removing and installing air cleaner housing
Remove front lock lower part.
> 551719 Removing and installing front lock lower part
Remove pedestrian protection.
> 697019 Removing and installing pedestrian protection
Remove cooling-air flaps.
> 193519 Removing and installing cooling-air flaps
Remove front bumper.
> 631019 Removing and installing front bumper

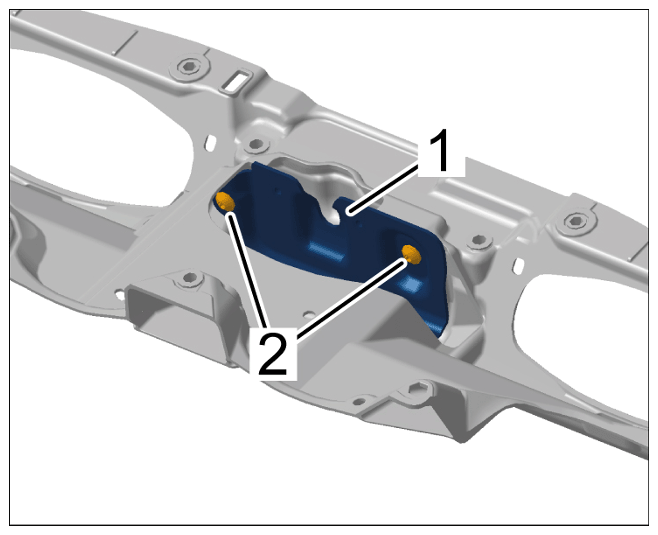

Unscrew screws -2- and remove sheetmetal panel -1- on lower part of lock.

Fig 1: Lock Carrier Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

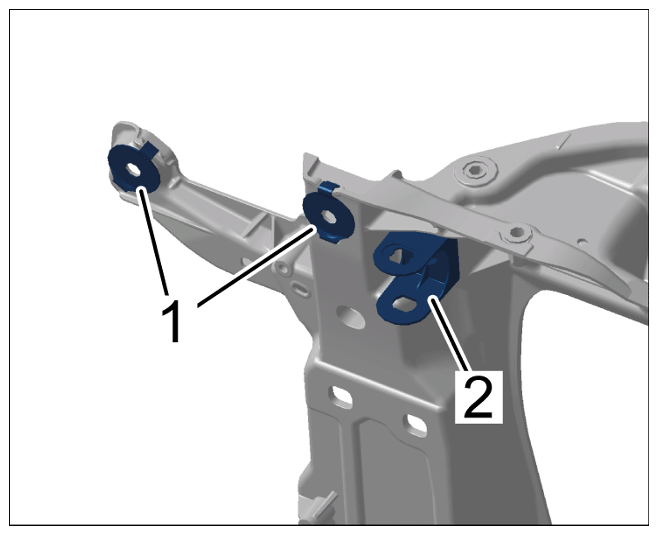

Remove washers -1- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing washers
Remove radiator module holder -2- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing radiator module holder
