Installing Cowl Panel Cover
- Insert cowl panel cover into the plenum panel and align it.
- Engage locking lugs -3-
on the cowl panel cover in the retaining strip on the windscreen -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

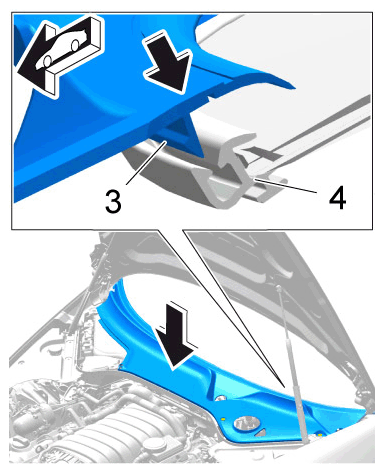

Cowl panel cover
- Press retaining lugs -1-
for the cowl panel cover into the clips underneath.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

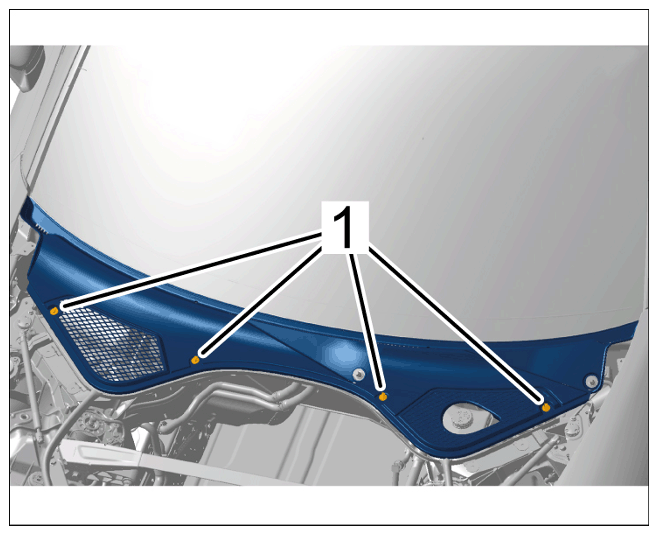

Retaining lugs for cowl panel cover
