Removing Front Side Member

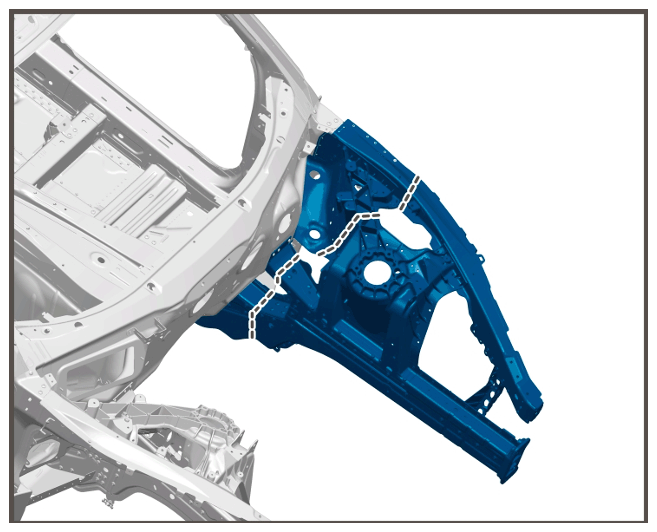

Fig 1: Front Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

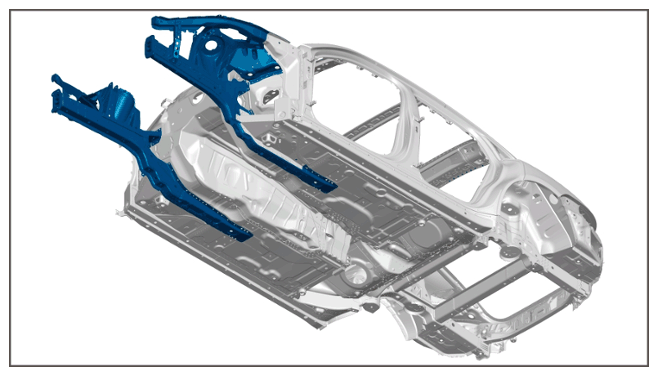

Installation position of front side member

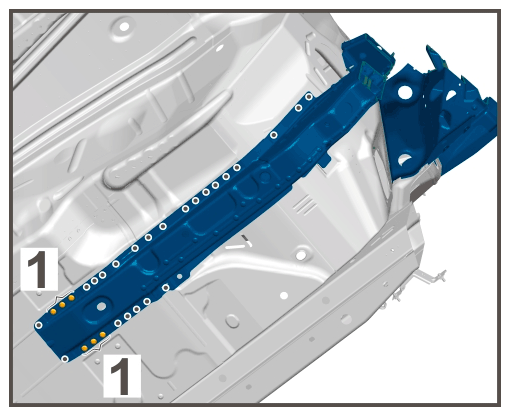

1. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

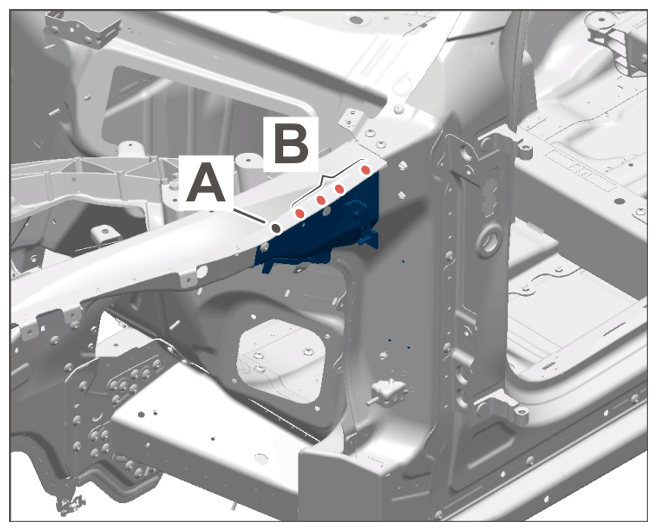

   Disconnecting connection points

   1. 1.1 Remove punch rivets -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   2. 1.2 Drill through clinch points -B-  using > Diameter 6.6 mm  .

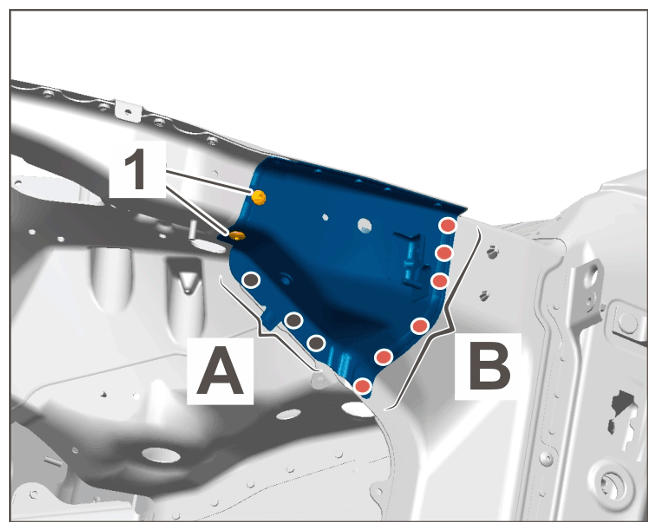

2. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connection points

   1. 2.1 Unscrew self-tapping screws -1-  .
   2. 2.2 Remove punch rivets -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   3. 2.3 Drill out spotwelds -B-  .

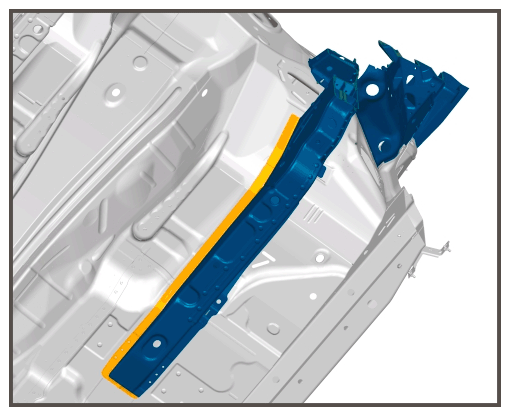

3. Heat up bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

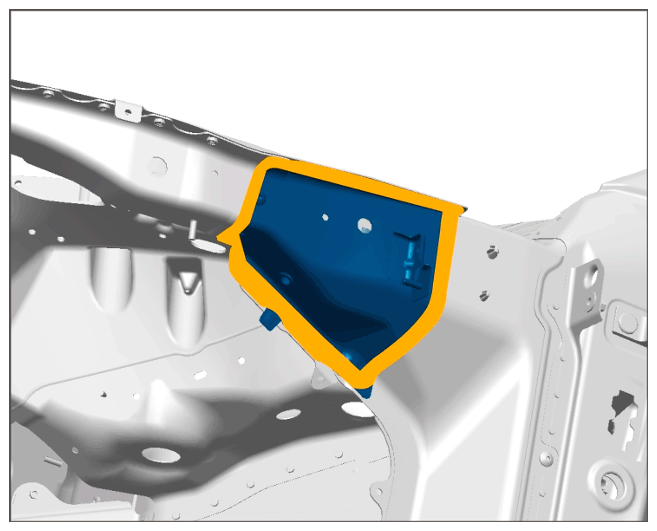

   Heating up bonding areas

4. Remove closing element for longitudinal member.

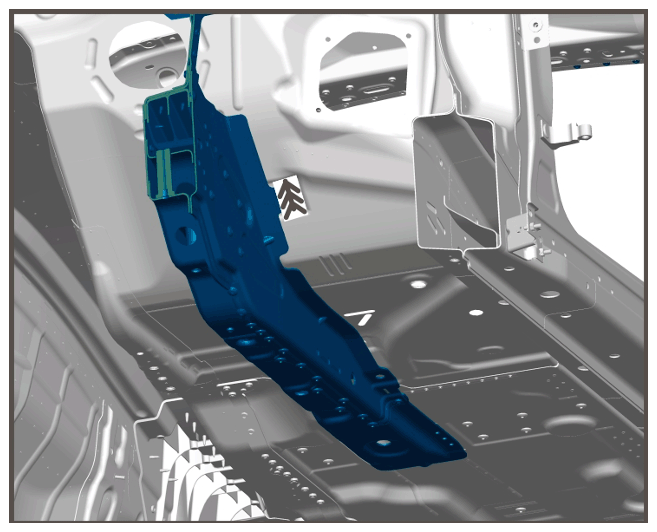

5. Cut front side member out roughly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

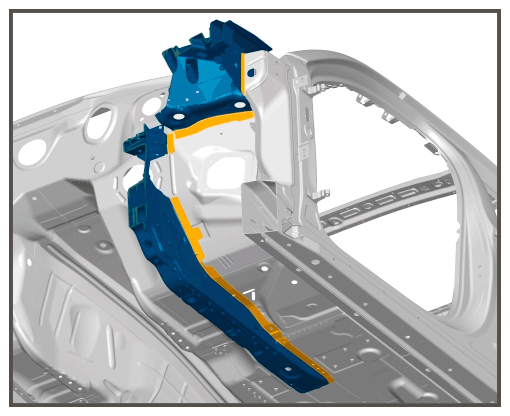

   Cutting front side member out roughly

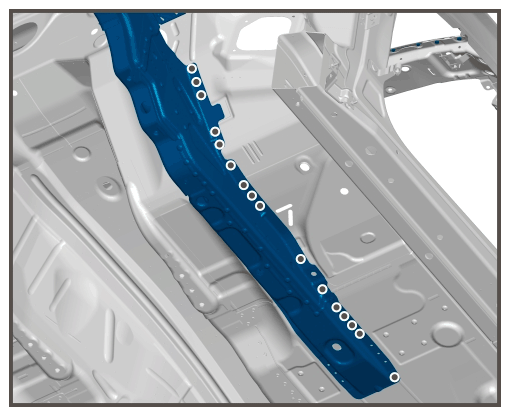

6. Grind off welded seam.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Grinding off welded seam

7. Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing punch rivets

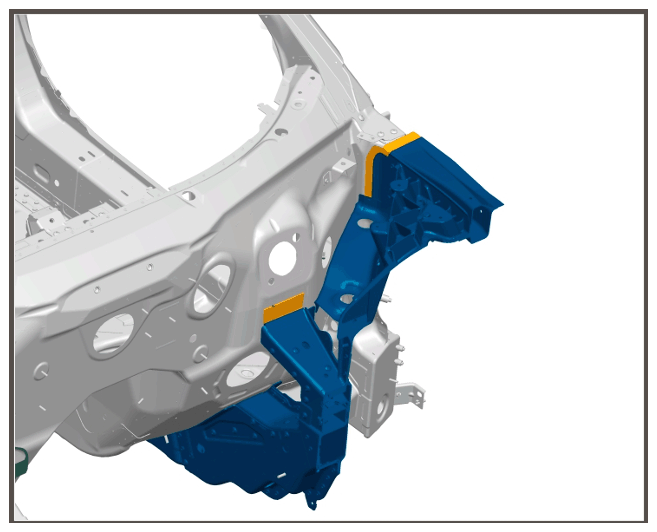

8. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connection points

   1. 8.1 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   2. 8.2 Unscrew self-tapping screws -1-  .

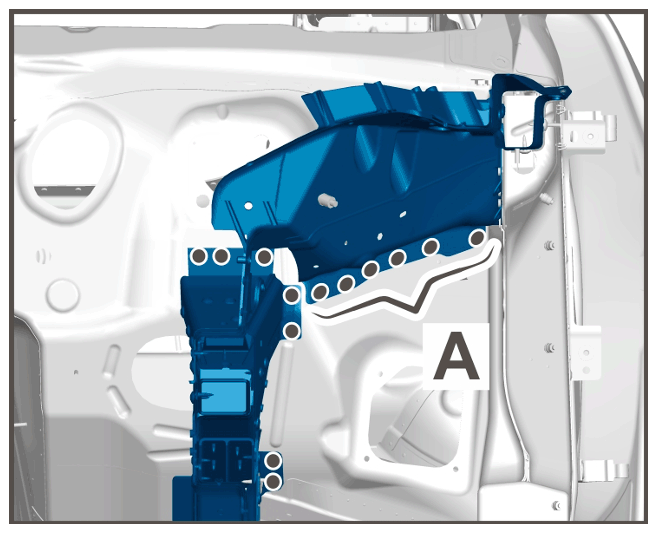

9. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connection points

   1. 9.1 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

      Information

      Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

   2. 9.2 Drill through clinch points -A-  using > Diameter 6.6 mm  .

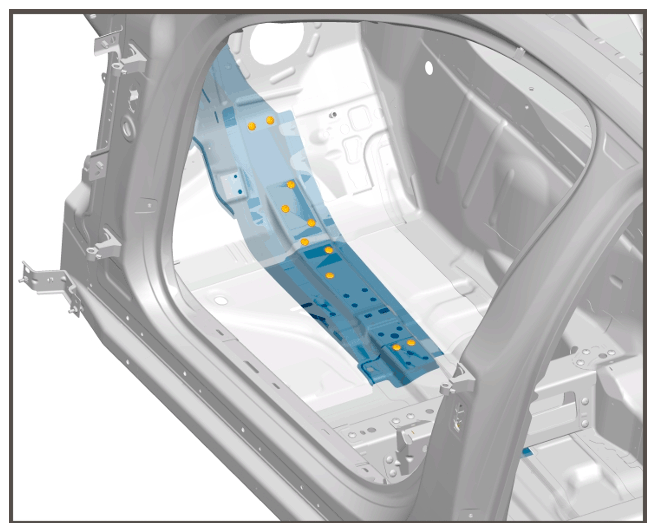

10. Unscrew self-tapping screws in the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing self-tapping screws

11. Heat up bonding areas.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating up bonding areas

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating up bonding areas

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating up bonding areas

12. Remove front side member.
