Removing Front Side Member (Section)

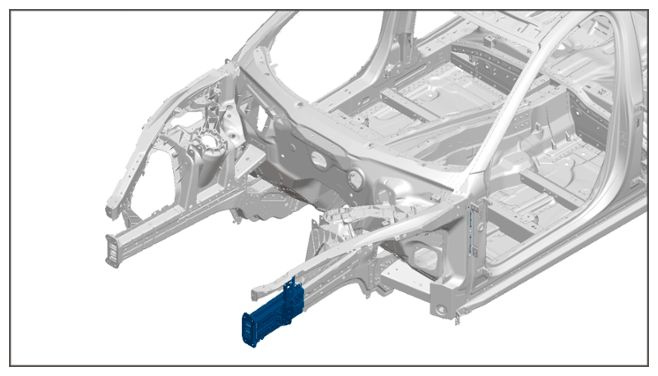

Fig 1: Front Side Member Component Location (Front Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of front side member (front section)

1. Cut side member in accordance with the new part.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

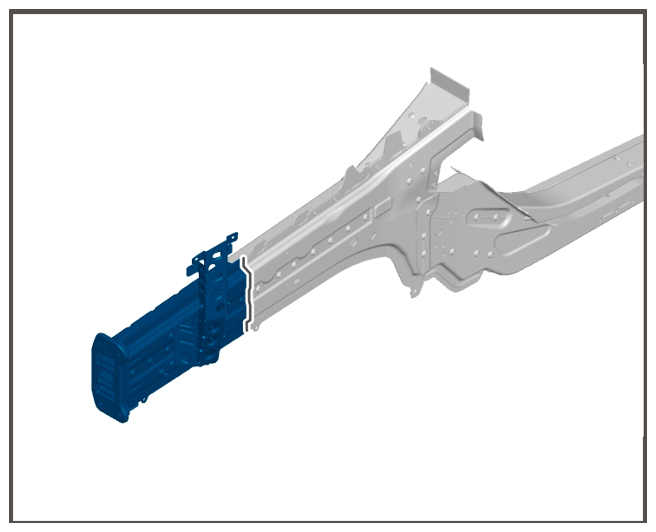

   Removing side member

2. Unscrew self-tapping screws in the fitting area of the side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

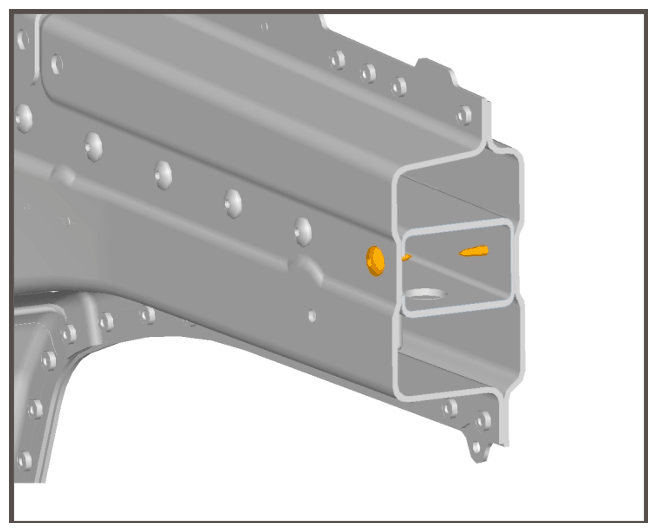

Unscrewing self-tapping screws
