Installing Front Side Member (Section)

Information

Some illustrations show the repairs on the previous model of the Panamera as an example since the procedure is identical.

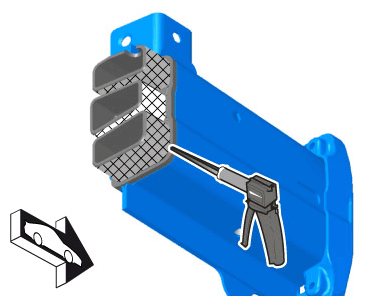

1. Apply adhesive to the sub-part and to the side member.

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Working with body structural adhesive

   > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

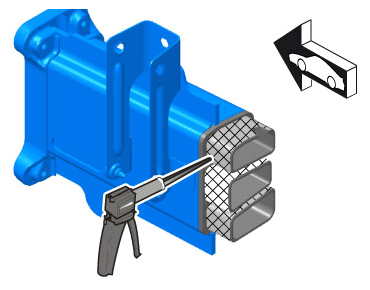

2. Apply adhesive to the side member.

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Apply adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Apply adhesive

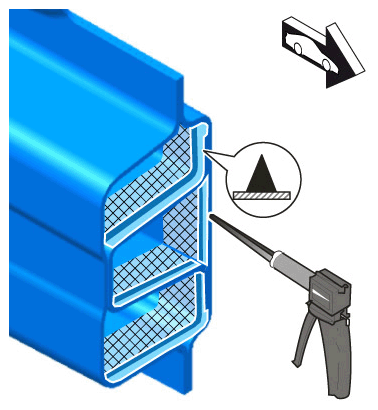

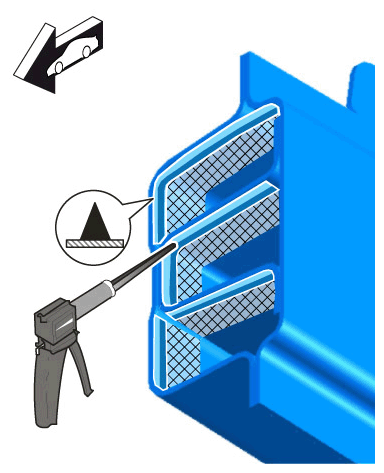

   1. 2.1 Also apply a bead of adhesive to the front edge. > Application depth 5 mm

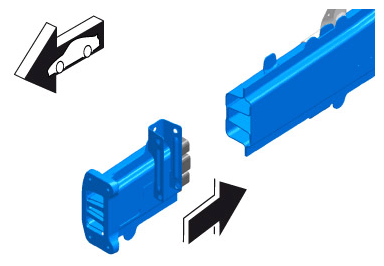

3. Position sub-part on the side member using the straightening bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

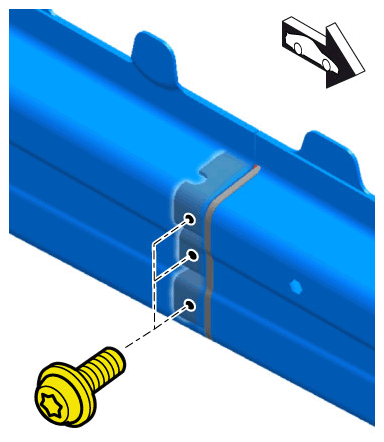

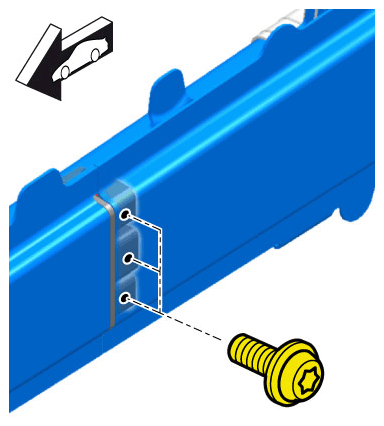

4. Screw in self-tapping screws > Torx screw 000.043.207.60  and tighten to the required tightening torque. > Tightening torque 9.5 Nm (7 ftlb.) +/- 1 Nm (0.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing front side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing front side member
