Removing Front Part Of Front Wheel Housing Liner

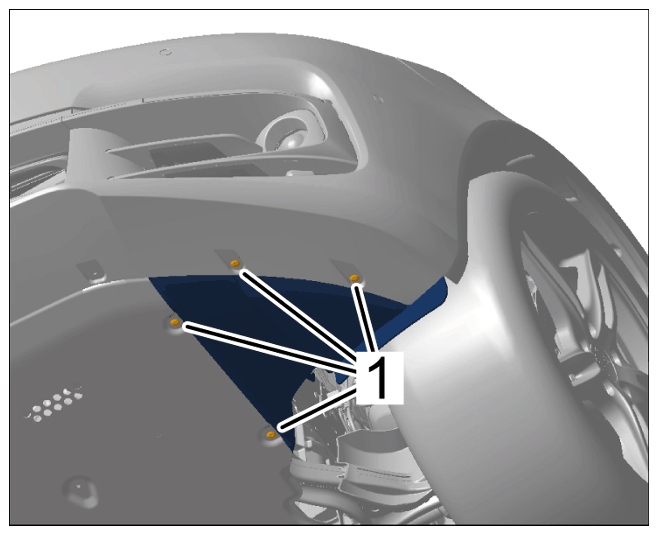

  1. Unscrew screws -1-  on front part of front wheel housing liner at the bottom.
    G16159897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on front part of front wheel housing liner at the bottom

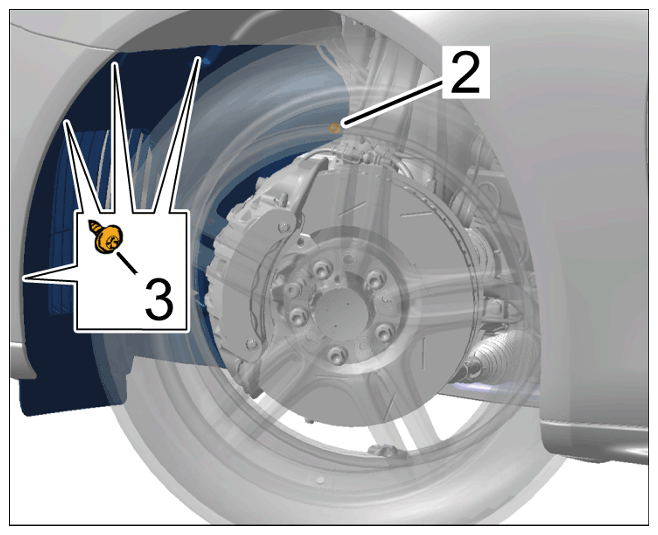

  2. Unscrew nut -2-  and screws -3-  on front part of front wheel housing liner.
    G16159898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front part of front wheel housing liner

  3. Remove front part of front wheel housing liner.
