Installing Rear Part Of Front Wheel Housing Liner

1. Position rear part of front wheel housing liner.
2. Screw in and tighten upper screws -3-  and nut -2-  in front part of wheel housing liner. > Tightening torque 2.5 (1.8 ftlb.) Nm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

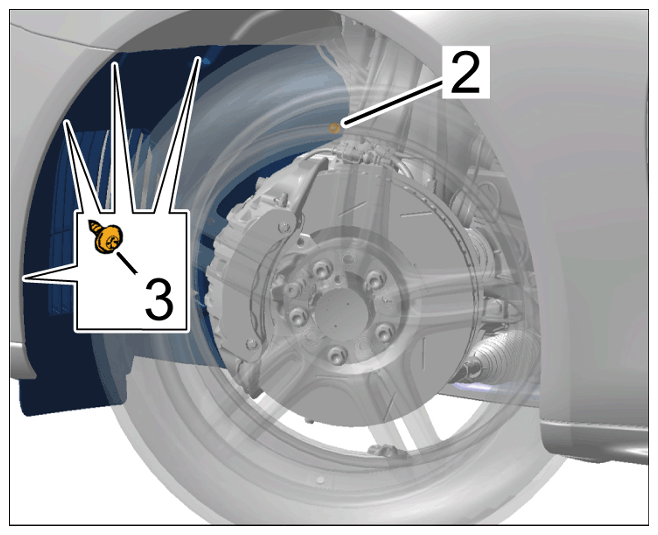

   Screws and nuts in front wheel housing liner

3. Screw in and tighten screws -1-  and nut -2-  . > Tightening torque 2.5 Nm (1.8 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws and nut on rear part of front wheel housing liner

4. Screw in and tighten nuts -2-  on cover for front underbody -3-  . > Tightening torque 2.5 Nm (1.75 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

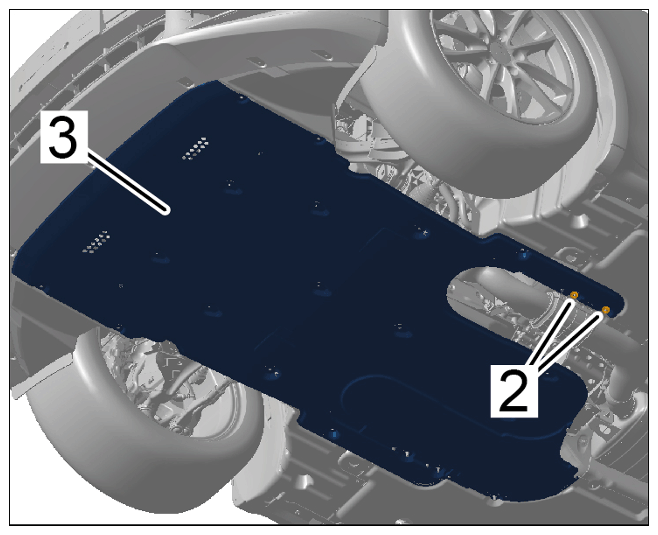

   Nuts on cover for front underbody

5. Screw in and tighten screws -1-  on cover for front underbody. > Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

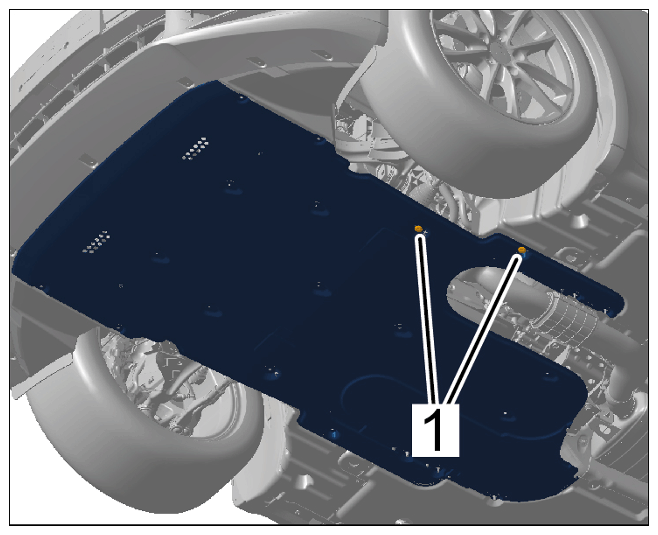

Screws on cover for front underbody
