Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

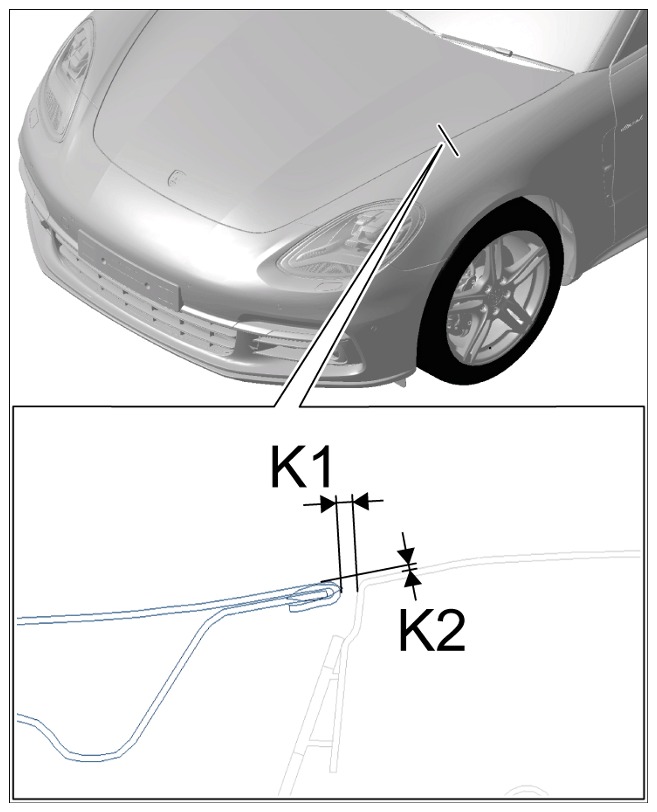

Front lid to wing (K1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K2)	Offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

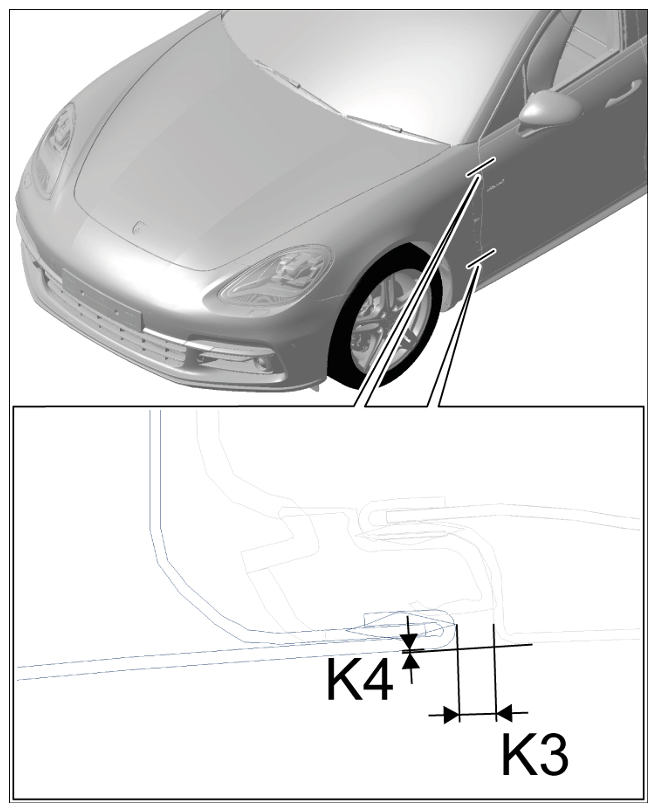

Front wing to door (K3)		Gap dimension	3.0 on 3.5 mm	+ 0.7 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door (K4)	Offset	Gap dimension	- 0.5 mm	+ 0.3 mm	- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

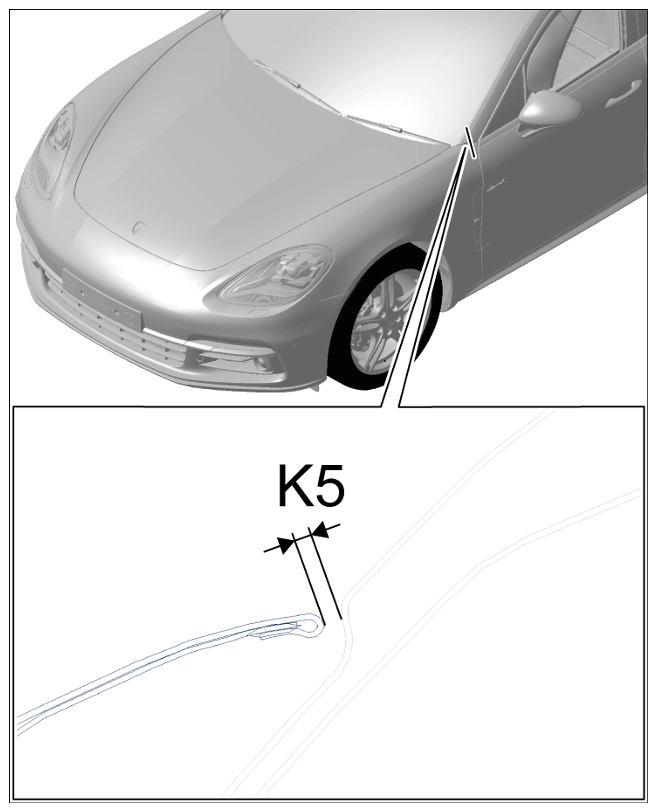

Front wing to A-pillar (K5)	Contour	Gap dimension	3.5 on >4.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

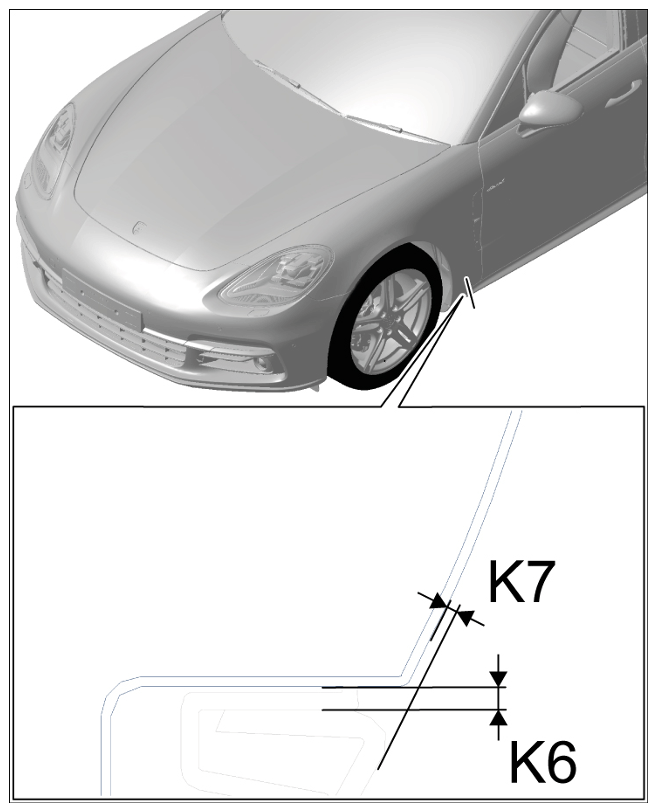

Front wing to door entry guard (K6)		Gap dimension	3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front wing to door entry guard (K7)	Offset	Gap dimension	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

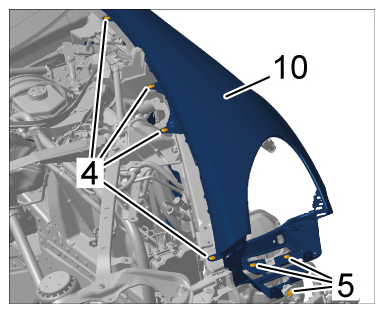

Screw securing front wing to bodyshell	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing
Screw securing front wing to lock carrier	Item 5	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing

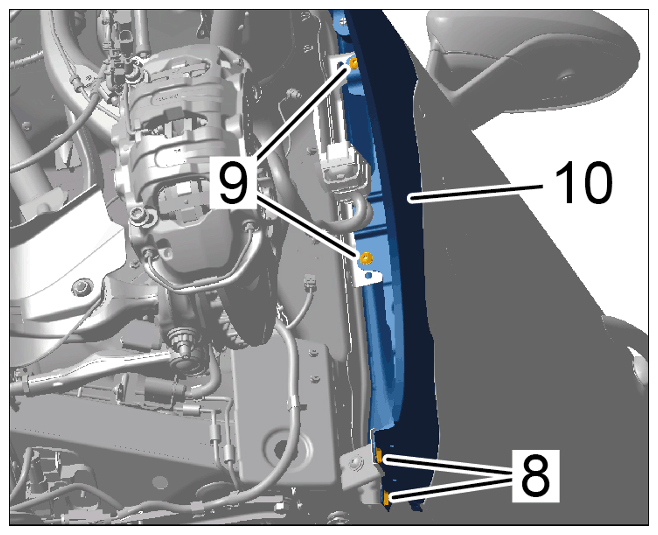

Screw securing front wing to A-pillar	Item 9	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to A-pillar
Nut securing front wing to door sill	Item 8	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to door sill

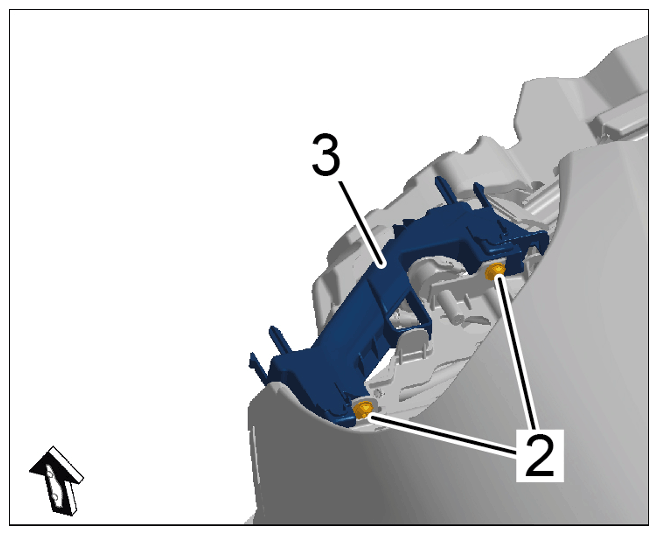

Screws securing headlight mounting to wing	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing headlight mounting to wing
