Preparing Connection Areas Of Body For Installing The Gusset Plate

1. Align contact surfaces and connections of the body.
2. De-burr connection points.
3. Prepare the marked areas for joining.

   > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

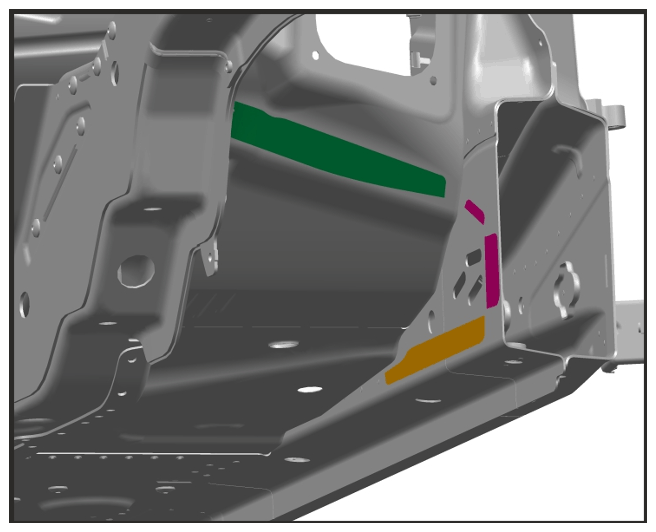

Preparing body connection areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

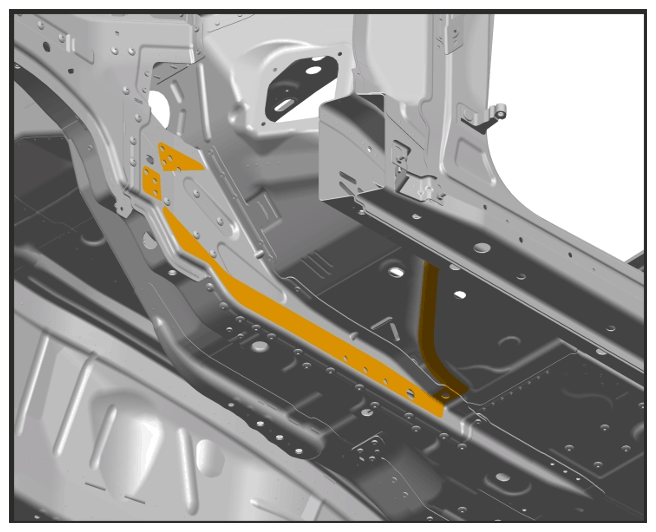

Preparing body connection areas
