Preparing Connection Areas Of Body For Installing The Closing Element

1. Align the sealing surface and connections of the body.
2. De-burr connection points.
3. Prepare marked areas for bonding and riveting.

   > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

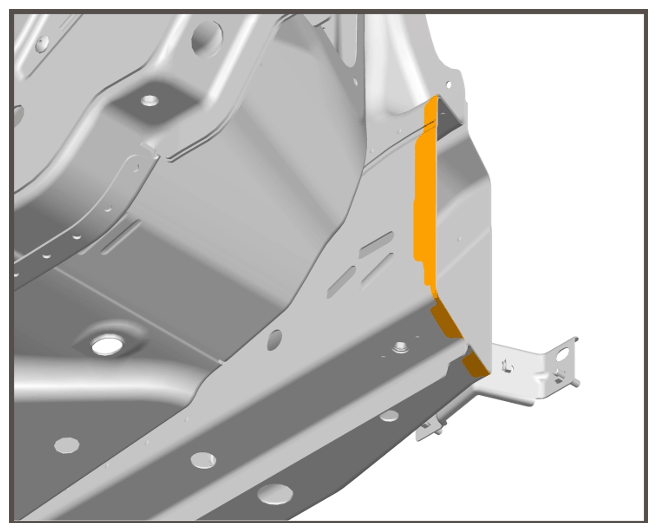

Preparing connection areas of the body

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

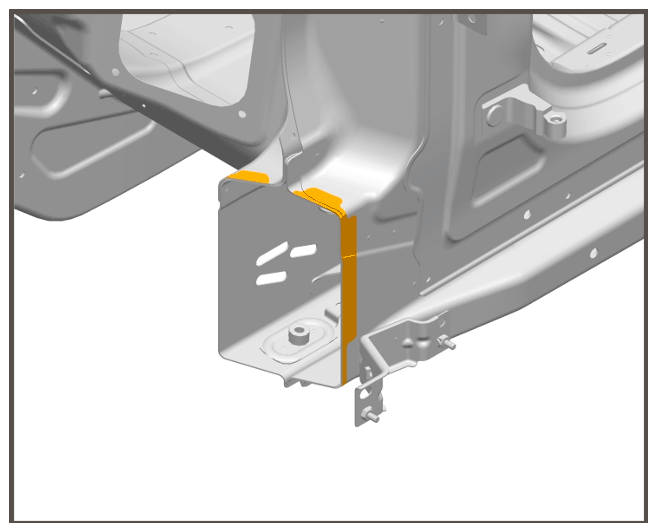

Preparing connection areas of the body
