Removing Antenna Amplifier

Information

The procedure for removing the left antenna amplifier is described here. The procedure for removing the right and lower antenna amplifiers is identical.

1. Switch off ignition and remove remote control (hand-held transmitter).

   Information

   The number of electric plug connections will vary depending on equipment.

2. Release and disconnect electric plug connections -1-  .

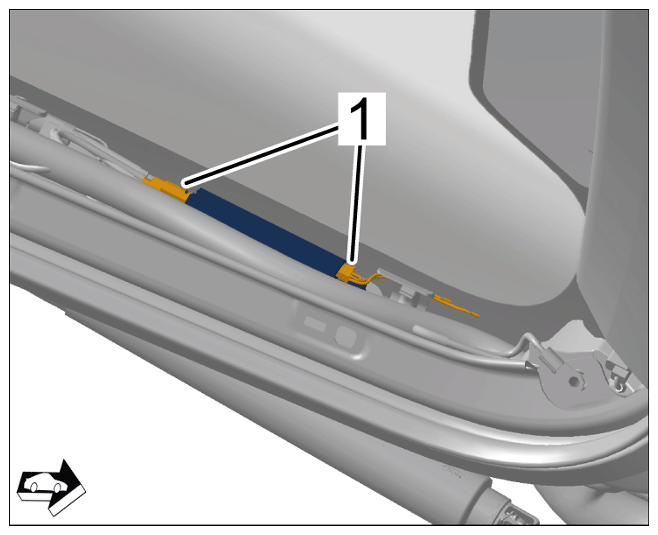

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connections

3. Remove antenna amplifier -2-  .

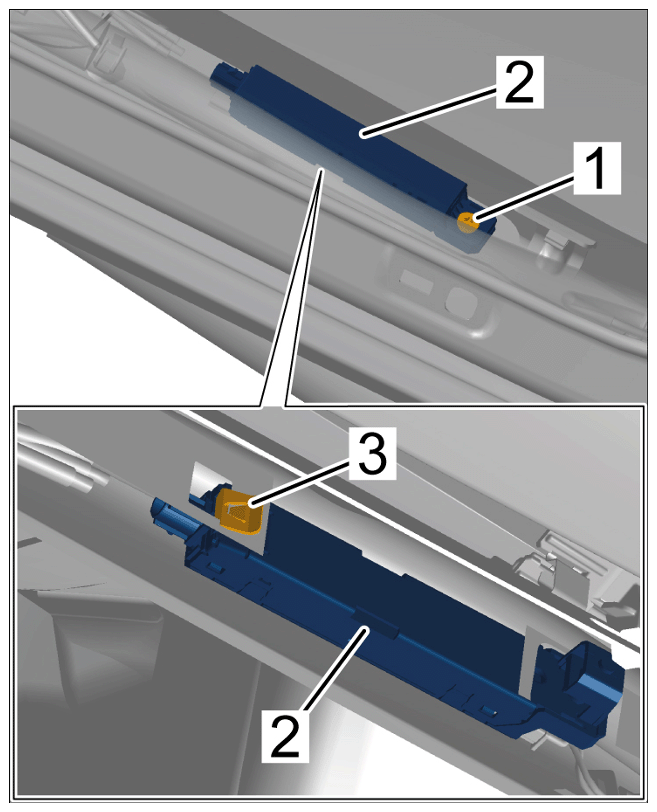

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing antenna amplifier

1. 3.1 Loosen screw -1-  by a few turns.
2. 3.2 Slide antenna amplifier -2-  with clip -3-  out of the bracket and remove it.
