Removing Subwoofer

  1. Unscrew screws -2-  for the right cover -3-  and unclip the right cover -3-  .
    G15875681Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing right cover

  2. Remove subwoofer -3-  .
    1. 2.1 Release and unplug electric plug connection -1-  .
    2. 2.2 Unscrew and remove screws -2-  .
    3. 2.3 Remove subwoofer -3-  .

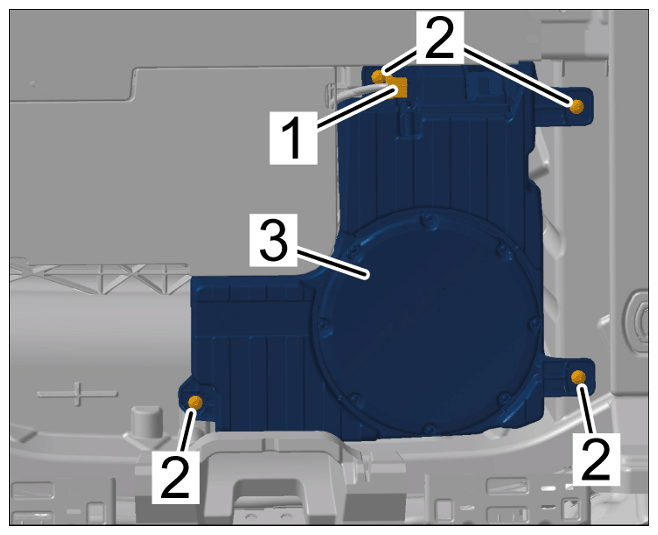

    G15875682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing subwoofer
