Removing The Coolant Pipe Switching Valve
WARNING: This page is about a different variant/trim than selected.
- Remove the coolant pipe switching valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

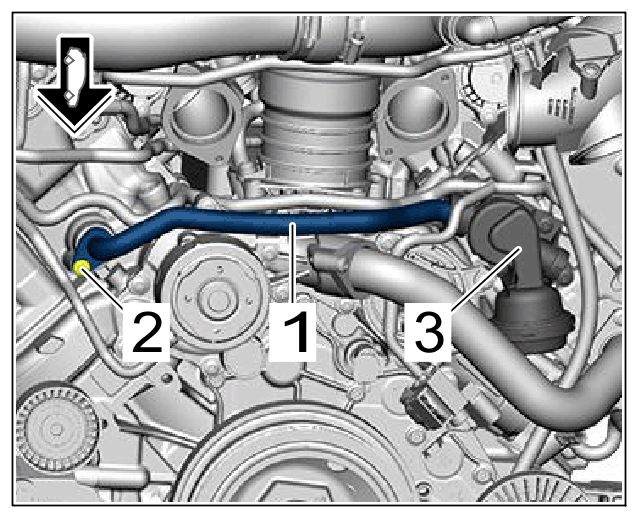

Coolant pipe switching valve
- 1.1
Unscrew screws -2-
.
- 1.2
Pull coolant pipe for switching valve -1-
out of the switching valve -3-
.
- 1.3
Catch escaping coolant and close off line connections using suitable stoppers.
