Removing Coolant Regulator

NOTIFICATION

Danger of slipping due to emerging coolant

• The emerging coolant will make the floor of the workshop slippery and may cause people to slip and fall over.
  1. → Collect emerging coolant in a suitable pan.

1. Remove coolant pipe -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pipe

   1. 1.1  Unscrew screws for coolant pipe -1-  .
   2. 1.2  Pull off coolant pipe -2-  and set it aside.

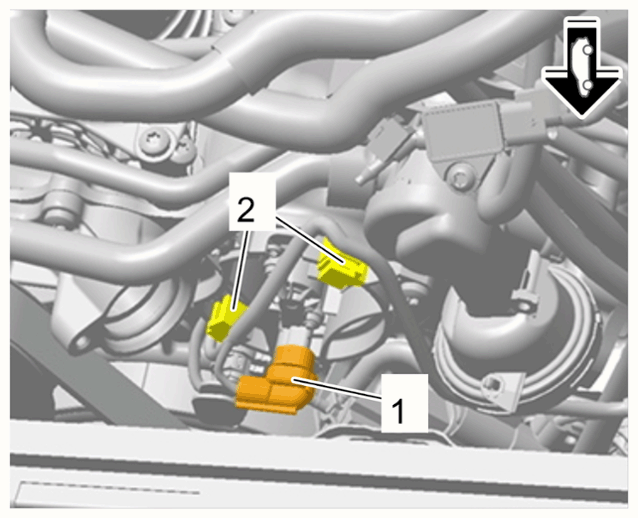

2. Disconnect electric line from coolant regulator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for coolant regulator

   1. 2.1  Release and disconnect electric plug connection -1-  .
   2. 2.2  Unclip clips -2-  .
      WARNING: Hot fluid

      • Danger of scalding
        1. → Let the fluid cool down.
        2. → Wear personal protective gear.

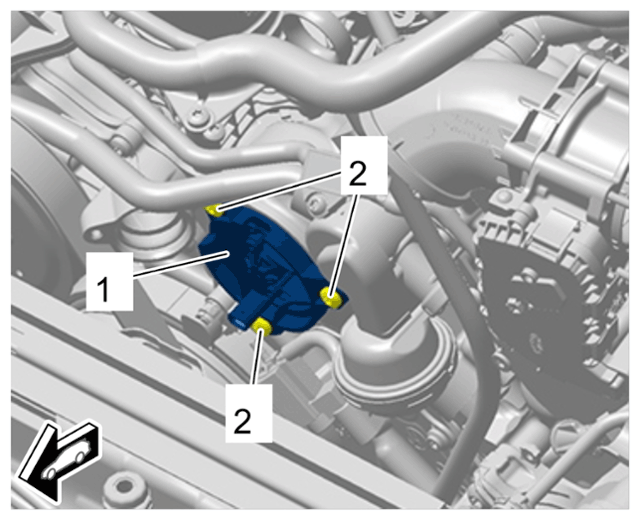

3. Remove coolant regulator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant regulator

   1. 3.1  Unscrew screws -2-  .
   2. 3.2  Remove coolant regulator -1-  .

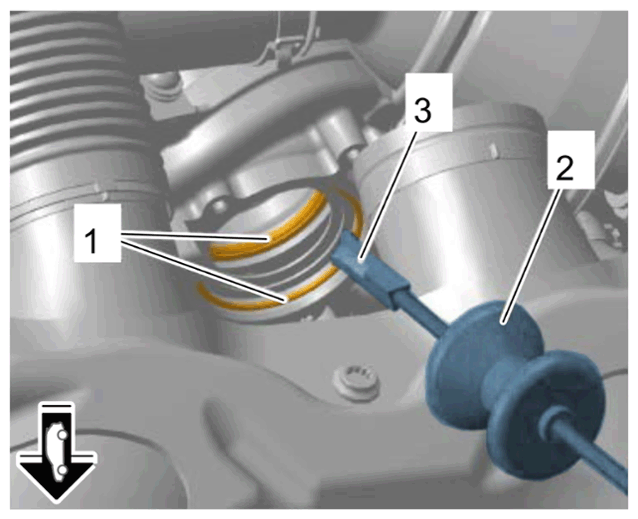

4. Pull off seals -1-  using > VW771 - multi-purpose tool-2-  and > VW771/37 - puller hook-3-  . Alternatively, use a commercially available assembly lever.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant regulator seals (similar to illustration)
