Removing Pulley

WARNING: This page is about a different variant/trim than selected.

Information

The pictures shown in this document may differ from the original.

  1. Loosen pulley -1-  .
    1. 1.1  Only loosen screws -2-  .
      G15150710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulley

  2. Loosen the generator drive belt.
    1. WM, 137819 REMOVING AND INSTALLING DRIVE BELT (V6 TURBO)
  3. Remove pulley -1-  .
    1. 3.1  Remove screws -2-  .
    2. 3.2  Remove pulley -1-  .

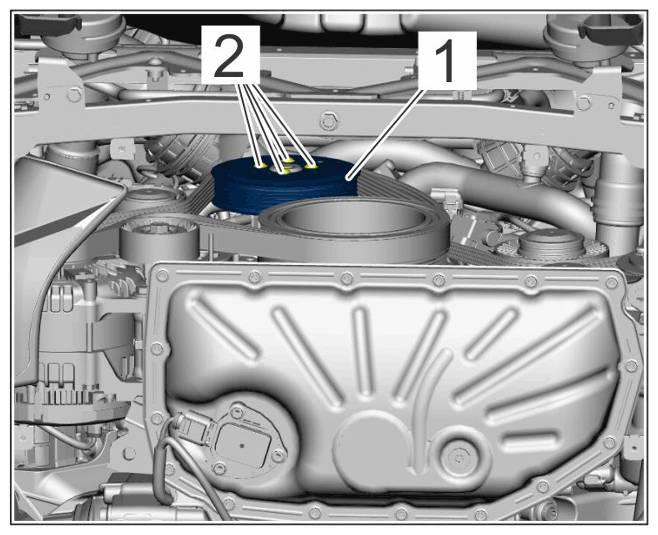

      G15150711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulley
