Removing Coolant Pump

NOTIFICATION

Incorrect handling of pulley

• Risk of damage to pulley
  1. → The pulley is sensitive to impact. Do not prise off the pulley with a screwdriver.
  2. → Do not re-use a damaged pulley.

1. Remove coolant pipe -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

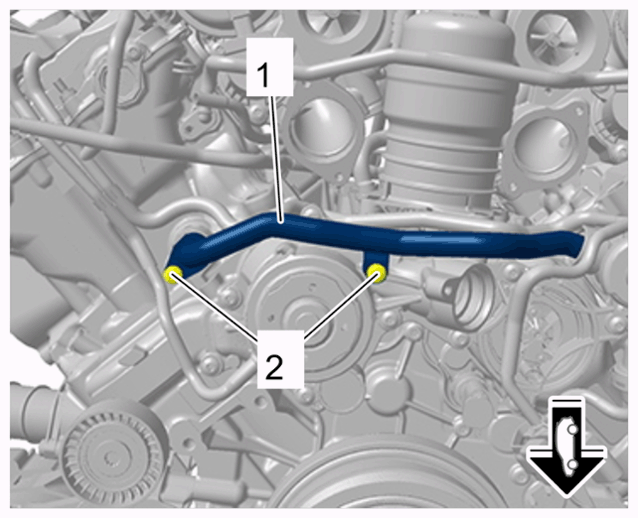

   Coolant pipe for coolant pump

   1. 1.1  Unscrew screws for coolant pipe -2-  .
   2. 1.2  Take off coolant pipe -1-  .

      Information

      • To ease removal, spray the pulley from the rear side with an anti-corrosion agent.
2. Remove pulley -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

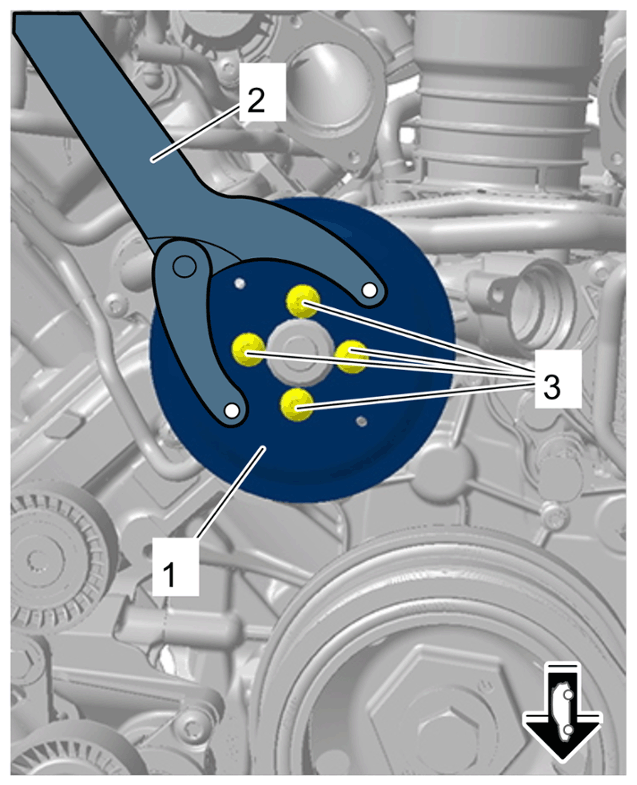

   Coolant pump pulley

   1. 2.1  > T10172A - Counter-hold tool-2-  must be fitted on the pulley -1-  , then unscrew screws on the pulley -3-  .
   2. 2.2  Remove pulley -1-  .
3. Remove coolant pipe over the coolant pump -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

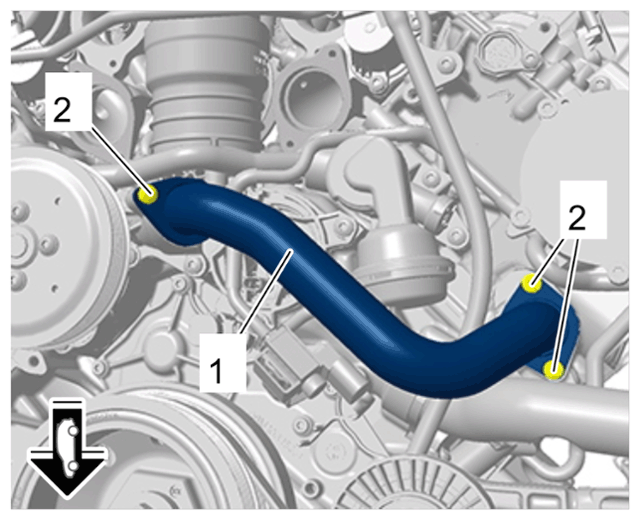

   Coolant pipe above coolant pump

   1. 3.1  Unscrew screws for coolant pipe -2-  .
   2. 3.2  Pull coolant pipe over coolant pump -1-  off the cylinder head and shut-off valve.
4. Remove coolant pump -9-  .

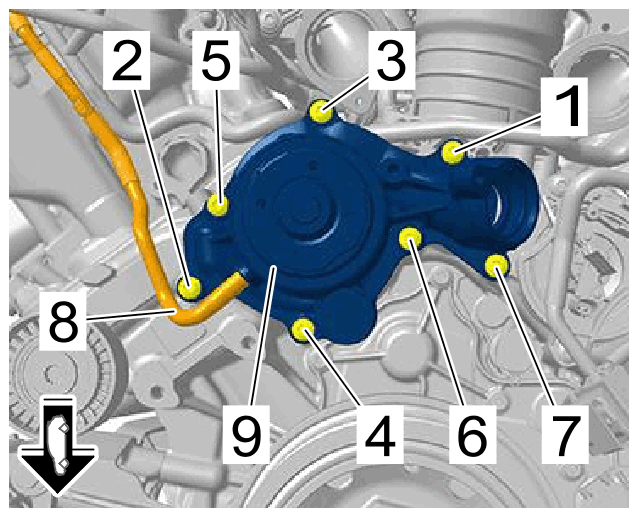

   Fig 1: Coolant Pump Screws Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pump

   1. 4.1  Have suitable aids ready for collecting emerging coolant.
   2. 4.2  Pull off the vacuum hose -8-  .
   3. 4.3  Unscrew screws on the coolant pump in the sequence -7 to 1-  .
   4. 4.4  Remove coolant pump -9-  and catch escaping coolant using suitable aids.
