Installing Additional Coolant Pump

WARNING: This page is about a different variant/trim than selected.
  1. Fit additional coolant pump holder.
    1. 1.1  Position additional coolant pump holder -1-  , fit double screws securing holder to chain housing cover -3-  and tighten them.
      1. Tightening torque 9 Nm (6.5 ftlb.)
    2. 1.2  Fit and tighten screws securing additional coolant pump to holder -2-  .
      1. Tightening torque 1.5 Nm (1 ftlb.)
      G15150698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Additional coolant pump (right cylinder bank)

  2. Secure the coolant line.
    1. 2.1  Position coolant line and push on hose.
    2. 2.2  Tighten clamp -2-  .
    3. 2.3  Fit and tighten nut -3-  .
      1. Tightening torque 9 Nm (6.5 ftlb.)

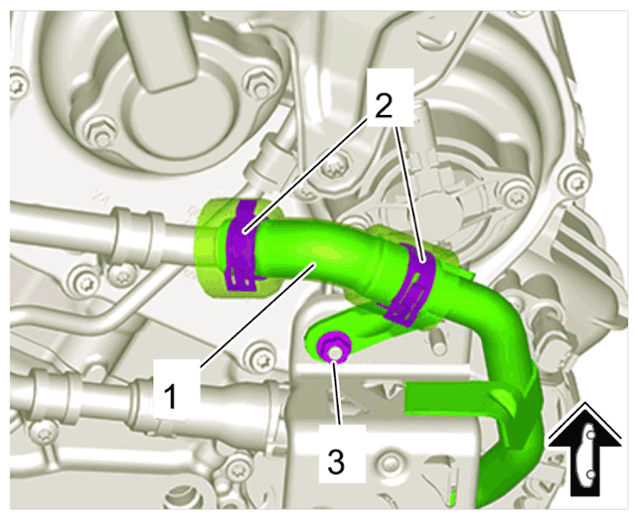

      G15150699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Upper coolant line
