Removing Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.

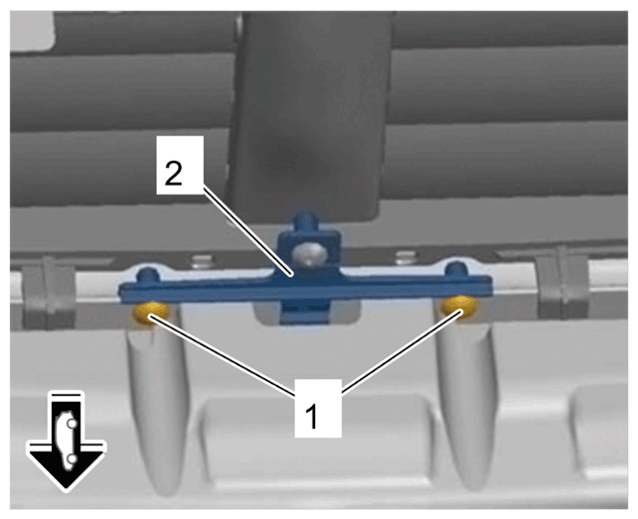

Only for vehicles with distance measuring sensor:
Unscrew screws -1- and remove holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor holder

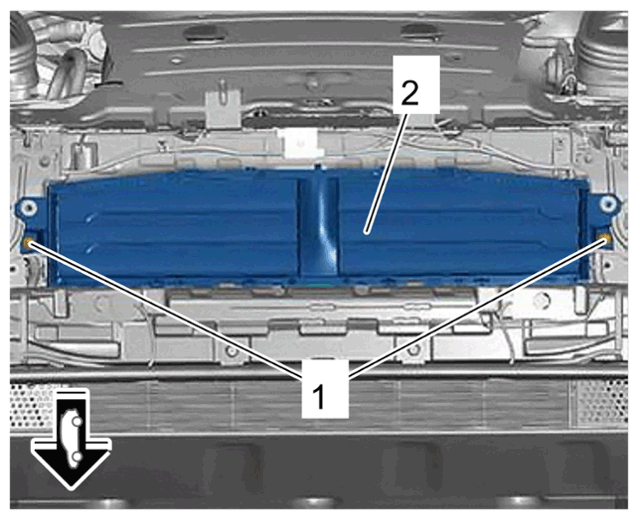

Unscrew screws -1- on cooling-air flaps -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps

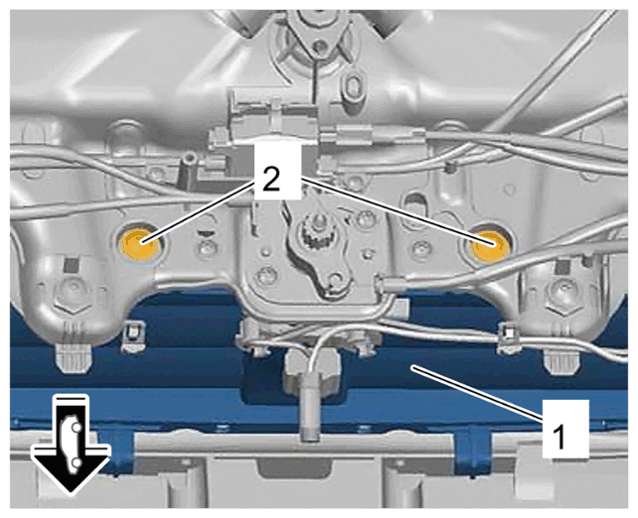

Unscrew screws -2- on upper part of lock carrier from cooling-air flaps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lock carrier
Remove cooling-air flaps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

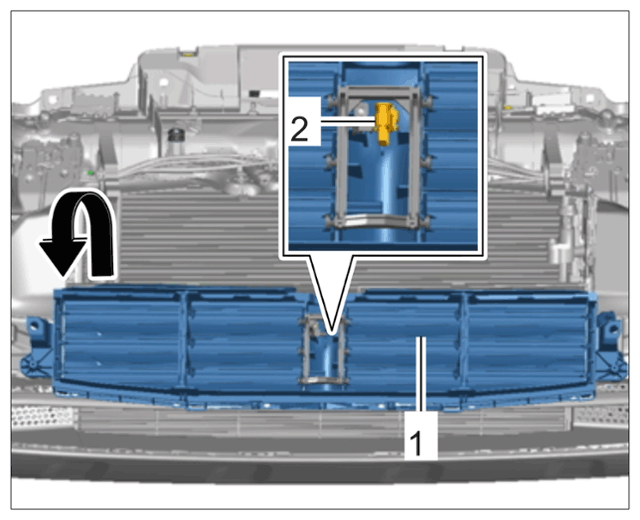

Cable plug for cooling-air flap motor
1. 4.1 Fold cooling-air flaps -1- forward in -direction of arrow- .
2. 4.2 Release and disconnect cable plug -2- .
3. 4.3 Remove cooling-air flaps -1- .
