Installing Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order. Pay particular attention to the following:
    1. 1.1  Tighten screws -2-  .
      1. Tightening torque 2.5 Nm (1.75 ftlb.)

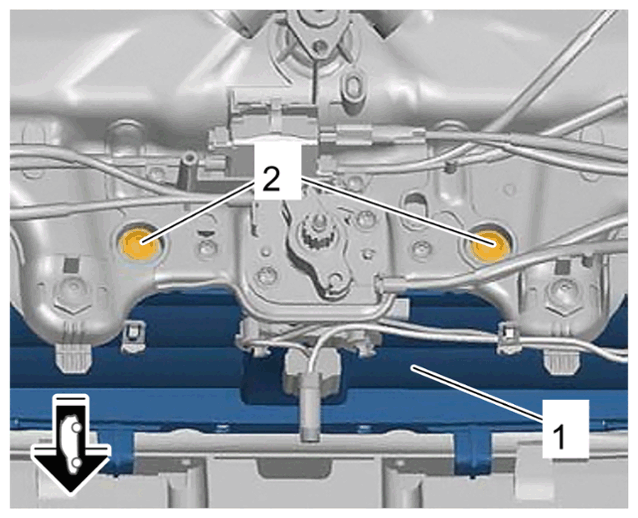

      G15150664Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for lock carrier

    2. 1.2  Tighten screws -1-  .
      1. Tightening torque 9.7 Nm (7.2 ftlb.)

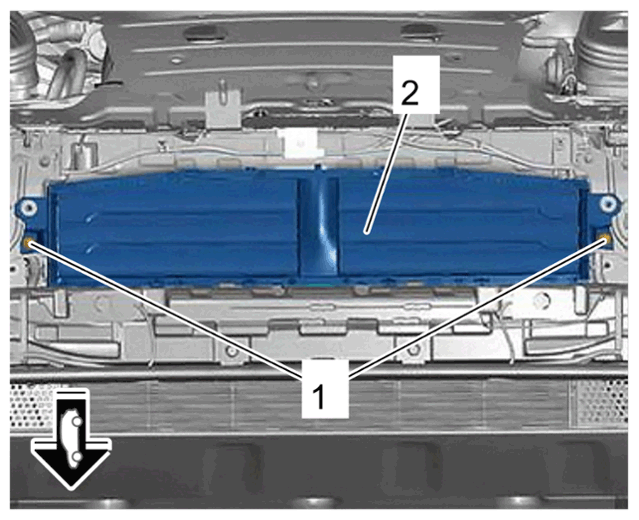

      G15150665Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cooling-air flaps

    3. 1.3 Only for vehicles with distance measuring sensor:

      Tighten screws -2-  .

      1. Tightening torque 2.5 Nm (1.75 ftlb.)

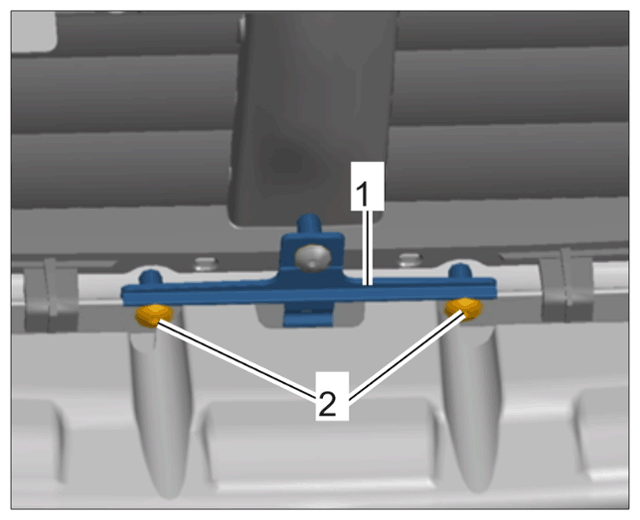

      G15150666Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Distance measuring sensor holder
