Checking Antifreeze In Coolant

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. → Avoid contact with hot fluid.
2. → Wear personal protective gear.

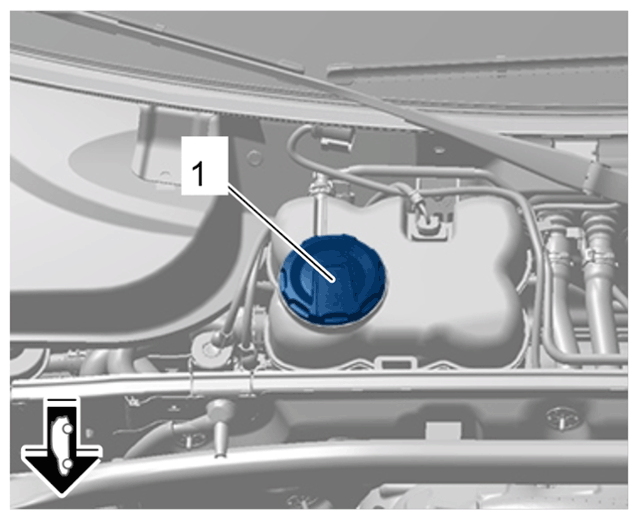

Unscrew coolant expansion tank cap carefully -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on coolant reservoir

Check antifreeze content.

G15150635

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

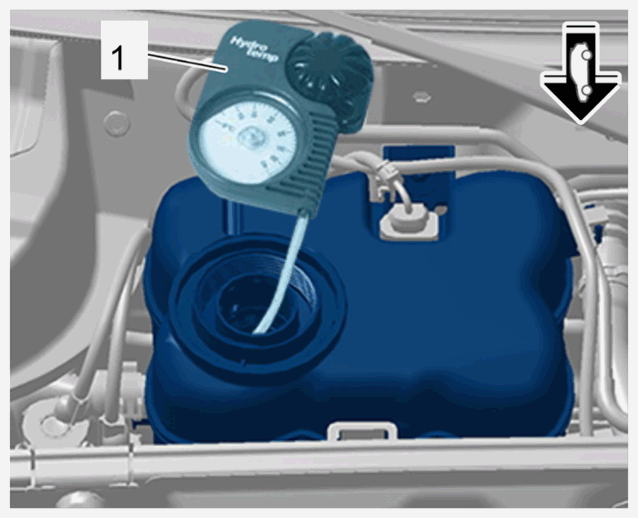

Checking antifreeze content

2.1 Check antifreeze content using antifreeze tester -1- .
2.2 If the antifreeze content is above -35°C, correct it by increasing the proportion of pure coolant as required.

Coolant mixture ratio

40% coolant and 60% distilled water for antifreeze protection up to -25°C
50% coolant and 50% distilled water for antifreeze protection up to -36°C

Measured antifreeze protection in °C	Antifreeze quantity to be added (in litres)
- 5	9
- 10	8.5
- 15	7.5
- 20	7
- 25	5
- 30	3.5
- 35	1.5

Tightening coolant expansion tank cap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on coolant reservoir
