Removing Oil Pan

WARNING: This page is about a different variant/trim than selected.

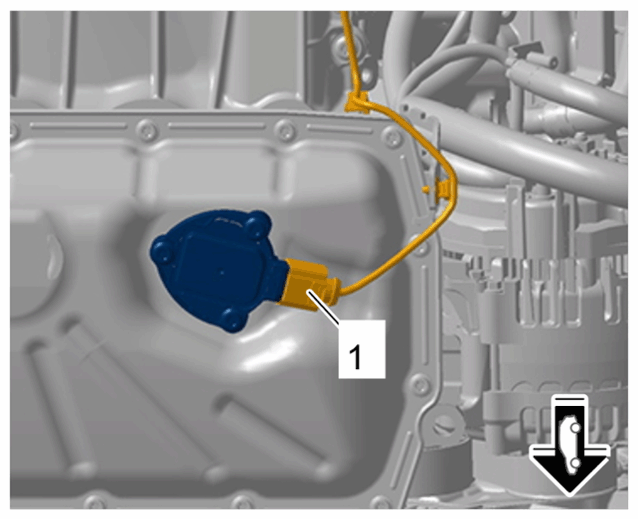

Release and disconnect cable plug for oil level sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug for oil level sensor

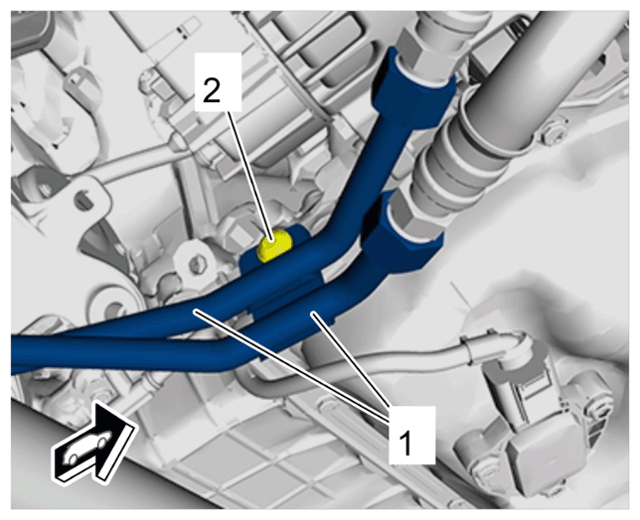

Disconnect line for ATF cooler -1- from oil guide housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line for ATF cooler
1. 2.1 Unscrew screw -2- .
Information

Check for residual oil when removing the oil pan.
Remove oil pan -1- .

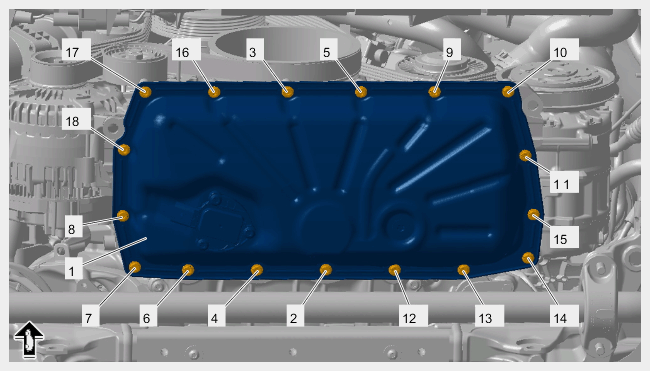

Fig 1: Oil Pan Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan
1. 3.1 Unscrew screws in the sequence -18 to 2- .
2. 3.2 Loosen and remove oil pan -1- .
Information

Sealing faces must be free of oil and grease!
Clean sealing faces on the oil pan and oil guide housing using a special plastic brush for drills to remove residual sealant.
