Installing Oil Pan

Information

If the oil pan shows signs of damage, it must be replaced.

1. Cut off the nozzle on the tube at the front marking (nozzle diameter is approx. 1.5 mm).

   Oil pump suction line blocked

   • Risk of engine damage
   • → The bead of sealant must not be too thick because if it is, excess sealant can get into the oil pan and block the strainer in the oil pump.

   Information

   Fitting and sealing components using liquid sealant.

   • Clean sealing faces to remove all traces of residual sealant.
   • Sealing faces must be free of grease and oil.
   • Clean sealing faces with primer Loctite 7515.
   • Use liquid sealant Loctite 5970-BM.

   Information

   The oil pan must be installed within 5 minutes of applying the sealant.

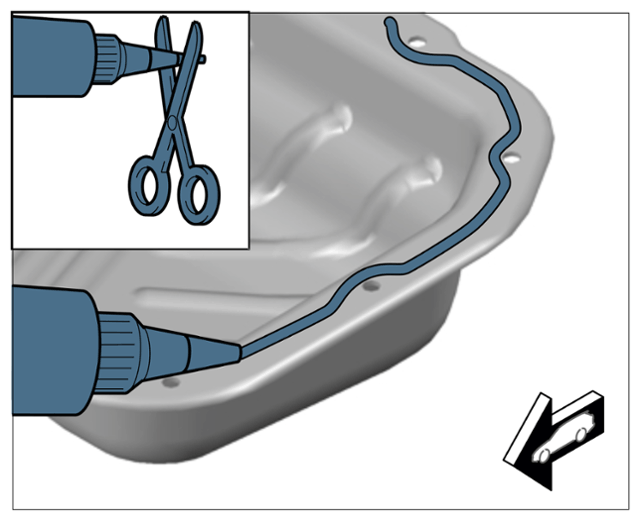

2. Apply a bead of sealant with a thickness of approx. 2 mm all around the cleaned and degreased oil pan. Apply a bead of sealant to the inside of the bores.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealant

3. Install oil pan -1-  .

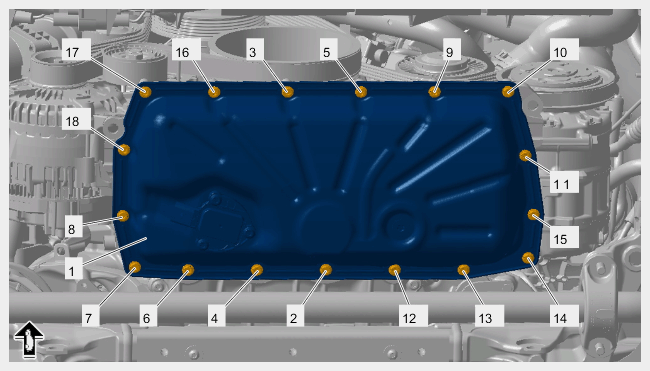

   Fig 1: Oil Pan Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pan

   1. 3.1  Fit oil pan -1-  .
   2. 3.2  Screw in screws and tighten in the sequence -2 to 18-  .
      • Initial tightening 3 Nm (2 ftlb.)
      • Final tightening + 90°

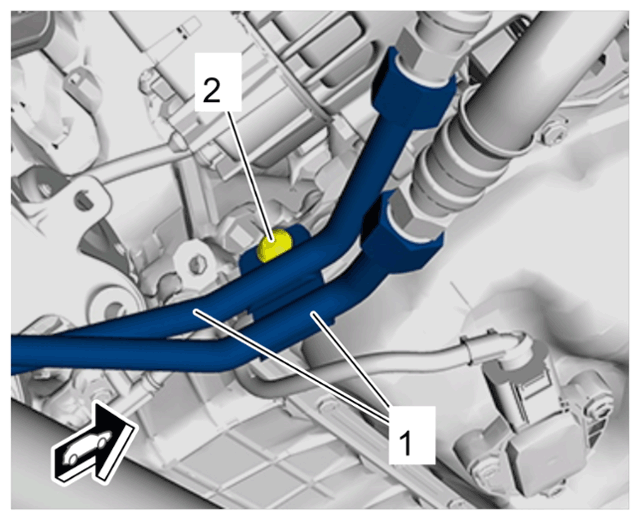

4. Secure line for ATF cooler -1-  to the oil guide housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line for ATF cooler

   1. 4.1  Fit and tighten screw -2-  .
      • Tightening torque 8 Nm (6.5 ftlb.)

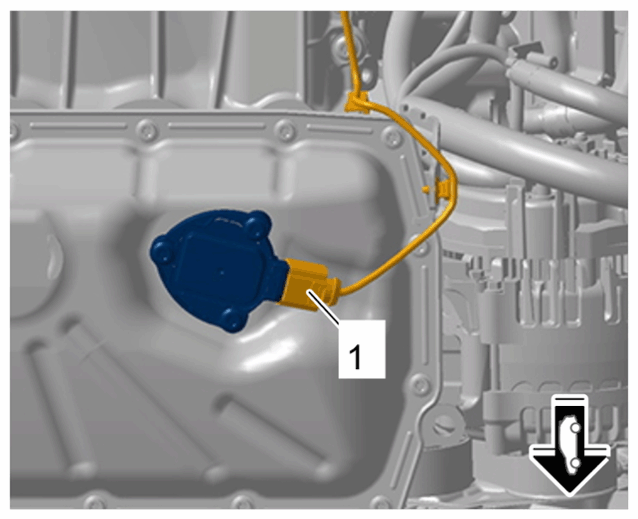

5. Connect and lock cable plug -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plug for oil level sensor
