Removing Oil Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

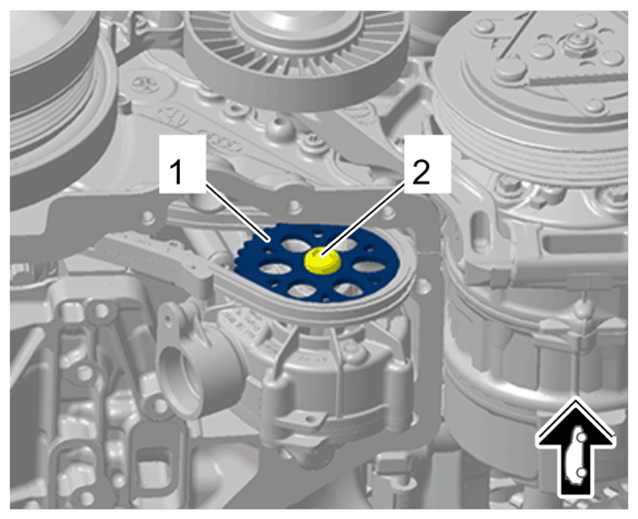

Oil pump sprocket

1. 1.1  Counter at the sprocket -1-  using > T10172A - counter-hold tool  and unscrew screw -2-  .
2. 1.2  Pull sprocket -1-  off the oil pump and leave it in installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

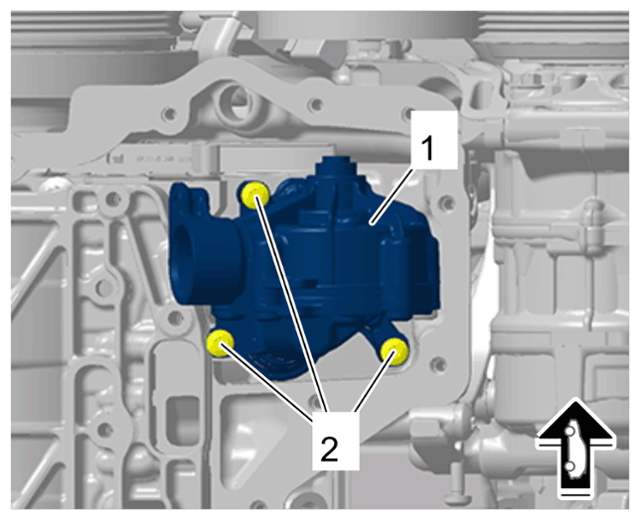

Screws for oil pump

1. 2.1  Unscrew screws -2-  and remove oil pump -1-  .
2. 2.1  1
3. 2.2  Replace oil pump seal.
