Removing Oil-Pressure Sender (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. → Let the fluid cool down.
2. → Wear personal protective gear.

Information

Install new oil-pressure sender as quickly as possible or close off the opening using a suitable stopper to prevent too much engine oil from leaking out.

Have suitable aids ready for collecting emerging oil.
Remove oil-pressure sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

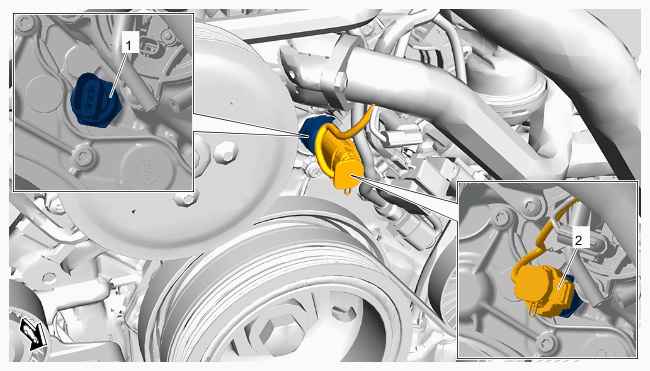

Oil-pressure sender
1. 2.1 Release and disconnect cable plug -2- .
2. 2.2 Unscrew oil-pressure sender -1- using > T40363 - socket wrench, a/f 24 .
3. 2.2 1
4. 2.3 Collect emerging engine oil.
