Installing Oil-Pressure Sender (V6 Turbo)
WARNING: This page is about a different variant/trim than selected.

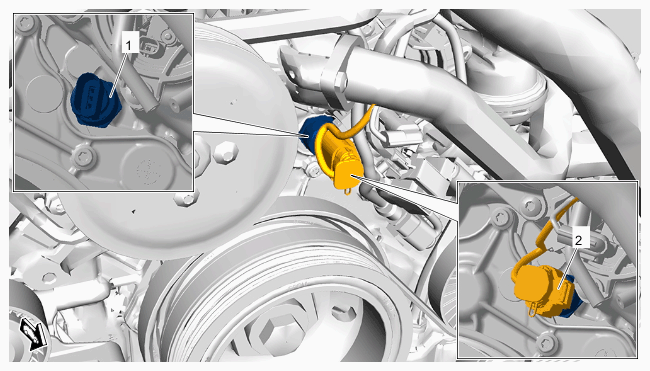

- Install new oil-pressure sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil-pressure sender
- 1.1
Screw in and tighten new oil-pressure sender -1-
using >
T40363 - socket, 24 mm
.
- Initial tightening 3 Nm (2 ftlb.)
- Final tightening + 45°
- 1.2
Connect and lock cable plug for oil-pressure sender -2-
.
