Preliminary Work

1. Remove cover for front underbody.
   • WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)

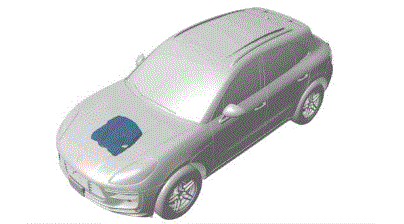

Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing engine cover (design cover)

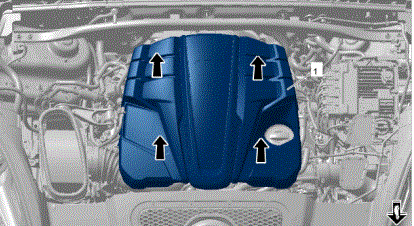

1. Carefully pull the engine cover (design cover) -1-  up off the four fastening points one at a time -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine cover (design cover)

2. Set engine cover (design cover) -1-  down with visible side on a soft surface -2-  and check it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

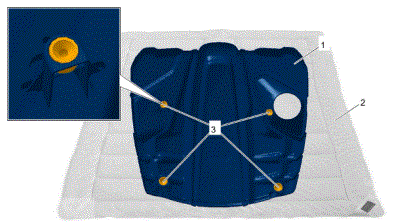

   Engine cover (design cover) - underside

   1. Check heat insulation, spotwelds and air baffle plates for damage.
      1. Replace engine cover (design cover) if damaged.
   2. Check rubber plug-in couplings -3-  for damage and replace them if necessary.

Installing engine cover (design cover)

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. The rubber plug-in couplings must engage securely.
   2. Check that the engine cover (design cover) is fitte securely by pulling on it.
