Filling In Engine Oil

WARNING: This page is about a different variant/trim than selected.

CAUTION: Incorrect oil level

Damage to engine and catalytic converter.
1. → Always observe specification for oil fill quantities.

Information

Only use engine oils that have been tested and approved by Porsche AG.
Dispose of used oil and oil filter in accordance with legal requirements in your country.

Slowly pour new engine oil into the service opening using a clean container or filler nozzle. Observe the prescribed filling capacity!

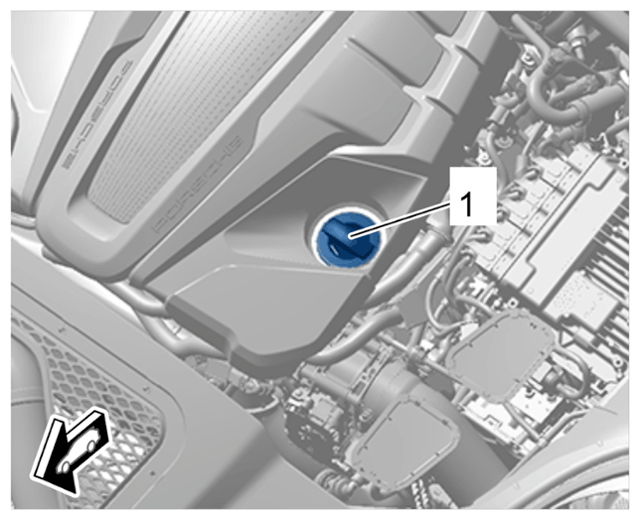

Screw on the cap -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking engine-oil level.
3
- WM, 170101 CHECK ENGINE-OIL LEVEL (V6 TURBO)

WARNING: Incorrect oil level

Damage to engine and catalytic converter.
Always observe specification for oil fill quantities.

Information

Only use engine oils that have been tested and approved by Porsche AG.
Dispose of used oil and oil filter in accordance with legal requirements in your country.

Slowly pour new engine oil into the service opening using a clean container or filler nozzle.
Observe the prescribed filling capacity!

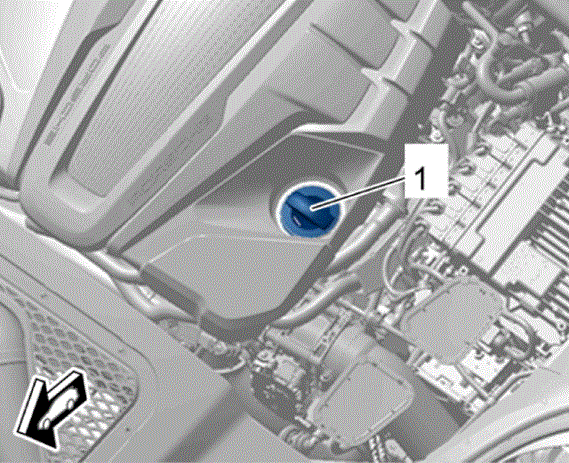

Screw on the cap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap
Checking engine-oil level.
WM, 170101 CHECK ENGINE-OIL LEVEL (V6 TURBO) .
