Drain Engine Oil

Information

• Only use engine oils that have been tested and approved by Porsche AG.
• Dispose of used oil and oil filter in accordance with legal requirements in your country.

1. Have a suitable container ready for collecting the engine oil.
2. Open the cap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cap

3. Drain engine oil.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

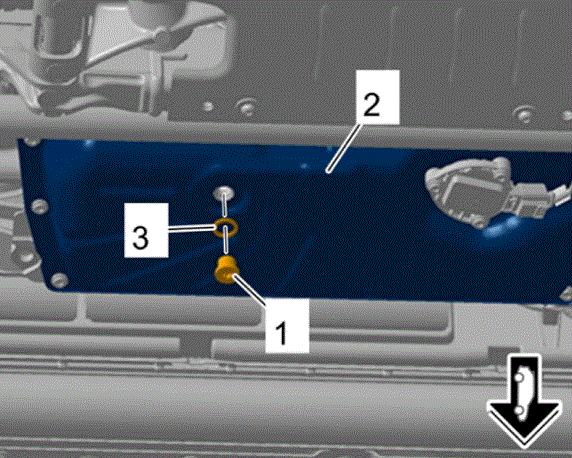

   Oil Drain Plug

   1. Unscrew oil drain plug -1-  from the oil pan -2-  and drain engine oil into a suitable container.
   2. Fit oil drain plug -2-  with a new  sealing ring -3-  and tighten it.

      Tightening torque 30 Nm (22 ft lb).
