Checking Engine-Oil Level

Information

Test Condition for Checking Engine-oil level:

• Vehicle is parked horizontally
• Engine at operating temperature
• The must be left running at idle speed for one minute. Then, the engine-oil level must be checked after two minutes with the engine stopped.

Information

Generally, the engine-oil level should be checked using the oil level display in the instrument cluster.

If there is no oil level display available, the test must be performed using T40178B - Oil Gauge Tester  .

For instruction for checking the oil level using the instrument cluster, See the appropriate service information.

Check using T40178B - Oil Gauge Tester  as follows:

1. Remove stopper from guide for oil dipstick using 3438 - hook  .
2. T40178B - Oil gauge tester  must be adjusted.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

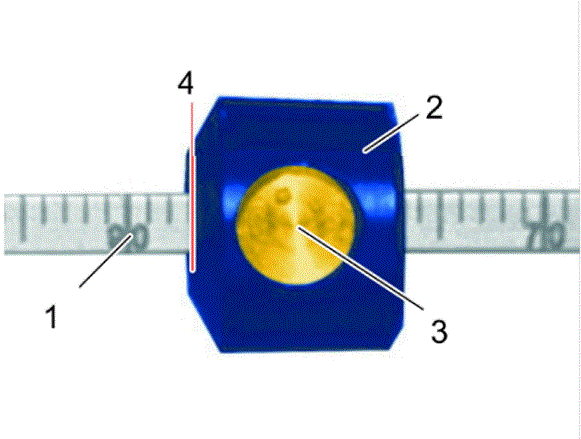

   1	Oil dipstick
   2	Adjusting ring
   3	Knurled screw
   4	Edge showing adjustment value

   1. Loosen the knurled screw -3-  from the oil dipstick -1-  .
   2. Position adjusting ring -2-  according to the value shown in the table; the adjustment value must be read off at the end of the adjusting ring -4-  .
   3. Fit the knurled screw -3-  on the oil dipstick -1-  .
3. T40178B - Oil gauge tester  must be pushed as far as it will go (setting ring) into the oil dipstick guide tube.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

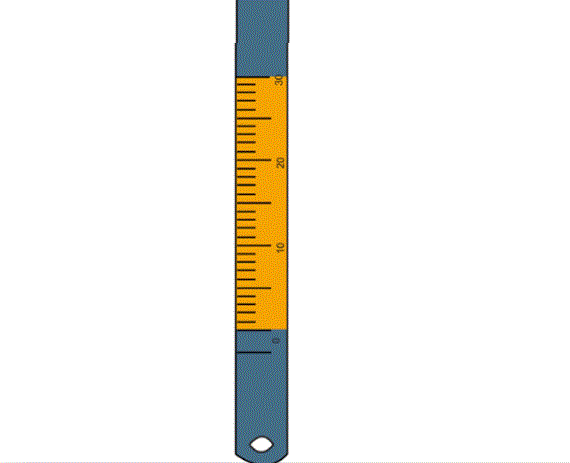

   Oil dipstick scale

4. T40178B - Oil gauge tester  must then be pulled out in order to read off the value on the lower scale. Oil dipstick scale

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil dipstick scale

5. Insert stopper into the oil dipstick guide.
6. Correct the oil level if necessary.
