Removing Front Speed Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove front speed sensor -1-  .

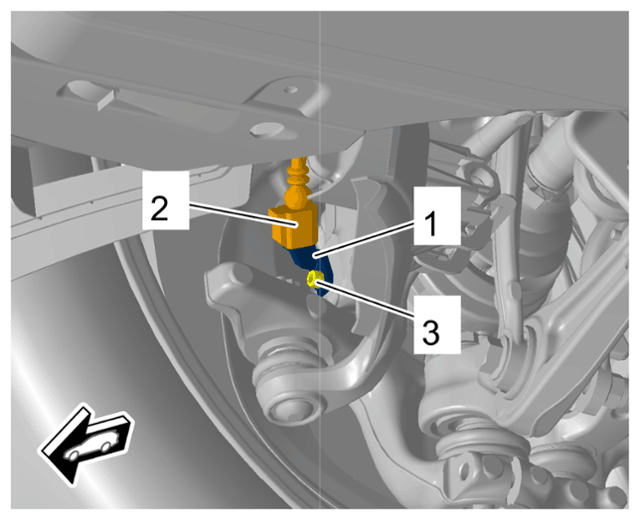

    G15156303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front speed sensor

    1. 1.1 Release and disconnect cable plug for front speed sensor -2-  .
    2. 1.2 Unscrew screw on front speed sensor -3-  .
    3. 1.3 Pull off front speed sensor -1-  .
