Removing Actuator For Electric Parking Brake

WARNING: This page is about a different variant/trim than selected.
  1. Remove actuator for electric parking brake -1-  from upper part of centre console cover -2-  .

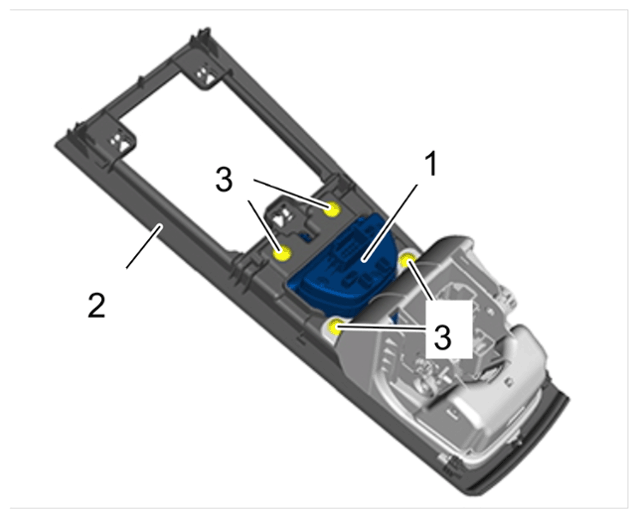

    G15156447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Actuator for electric parking brake

    1. 1.1 Unscrew screws -3-  .
    2. 1.2 Remove actuator for electric parking brake -1-  .
